Microchannel plate photomultiplier tube

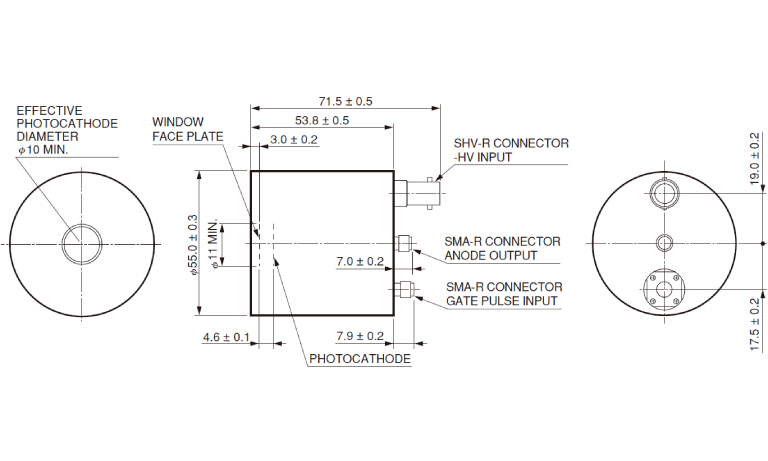

|Tube Size||Dia.55 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.10 mm|
|Wavelength (Short)||160 nm|
|Wavelength (Long)||850 nm|
|Wavelength (Peak)||430 nm|
|Spectral Response Curve Code||500S|
|[Max. Rating] Anode to Cathode Voltage||-3400 V|
|[Max. Rating] Average Anode Current||0.0001 mA|
|Anode to Cathode Supply Voltage||-3000 V|
|[Cathode] Luminous Sensitivity Min.||100 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||150 μA/lm|
|[Cathode] Radiant Sensitivity Typ.||52 mA/W|
|[Anode] Luminous Sensitivity Typ.||30 A/lm|
|[Anode] Gain Typ.||2.0 x 105|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Time Response] Rise Time Typ.||0.18 ns|
|[Time Response] Transit Time Typ.||1 ns|
|[Time Response] Transit Time Spread Typ.||0.09 ns|
