Microchannel plate photomultiplier tube


55 mm dia., MCP-PMT, Bialkali photocathode (Effective area : 10 mm dia./Spectral response : 160 nm to 650 nm)

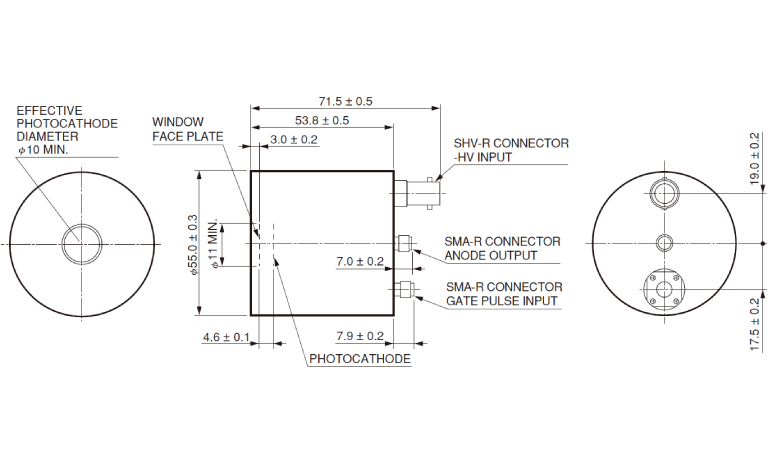

Tube Size Dia.55 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.10 mm
Wavelength (Short) 160 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 400 nm
Spectral Response Curve Code 403K
Photocathode Material Bialkali
Window Material Quartz
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Max. Rating] Average Anode Current 0.0001 mA
Anode to Cathode Supply Voltage -3000 V
[Cathode] Luminous Sensitivity Min. 20 μA/lm
[Cathode] Luminous Sensitivity Typ. 45 μA/lm
[Cathode] Radiant Sensitivity Typ. 48 mA/W
[Anode] Luminous Sensitivity Typ. 9 A/lm
[Anode] Gain Typ. 2.0 x 105
[Anode] Dark Current (after 30min.) Max. 0.5 nA
[Time Response] Rise Time Typ. 0.18 ns
[Time Response] Transit Time Typ. 1 ns
[Time Response] Transit Time Spread Typ. 0.09 ns
