FTIR engine
C16511-01
High-speed and compact near infrared spectrometer that can be incorporated into inline process
The C16511-01 Fourier transform infrared spectrometer (FTIR) engine is a compact Fourier transform near infrared spectrometer. A Michelson optical interferometer, a control circuit, and a calculation circuit are built into a compact enclosure. Spectrum and absorbance can be measured by connecting a PC via Ethernet. It can be applied to real-time measurement performed on site without bringing the measurement sample into the analysis room as well as continuous monitoring. In addition, Ethernet communication offers higher communication speed and durability than USB communication, making it applicable to FA devices.
The optical interferometer has a built-in light input section, beam splitter, fixed mirror, movable mirror (ϕ3 mm), and photodetector. The photodetector acquires light intensity signals that vary depending on the position of the movable mirror. The optical spectrum is obtained by processing (Fourier transform) these light intensity signals.
The FTIR engine has a built-in semiconductor laser (VCSEL: vertical cavity surface emitting laser) for monitoring the movable mirror position, which allows spectrum measurement with high wavelength accuracy.
The product includes evaluation software with functions for setting measurement conditions, acquiring and saving data, drawing graphs, and so on. Furthermore, the dynamic link library (DLL) function specifications are disclosed, so users can create their original measurement software programs.
Features
- Compact
- High speed: 275 frames/s
- Optical fiber input type
- High S/N: Suitable for diffuse reflection measurements and absorbance measurements
- Spectral response range: 1100 nm to 2500 nm
- Ethernet compatible
Various measurement examples by FTIR engine
Various data measured by HAMAMATSU and external experts are available.
Specifications
| Optical interferometer | Michelson interferometer (with a built-in ϕ3 mm movable mirror) |
|---|---|
| Photodetector | InGaAs PIN photodiode |
| Light input method | Optical fiber input type (with SMA connector) |
| Interface | Ethernet compatible (GigE Vision) |
| Spectral response range | 1100 to 2500 nm |
| Spectral resolution (FWHM) (typ.) | 5.7 nm |
| Wavelength reproducibility (max.) | 0.5 nm |
| Wavelength temperature dependence | ±0.06 nm/℃ |
| Signal-to-noise ratio | 10000 |
| Measurement condition | Spectral resolution (FWHM): Wavenumber resolution (FWHM) equivalent to 25 cm-1 Signal‐to‐noise ratio: Ratio of the peak value of the spectrum data when light is incident to the root mean square (rms) of noise in the dark state |
Dimensional outline (unit: mm)
Related videos
Fourier Transform Infrared Spectrometer FTIR engine
Features, configuration, and operating principles of the FTIR engine are introduced.
Diffuse reflection measurement of powder samples
Diffuse reflection measurements of sucrose and fructose samples by the FTIR engine are demonstrated.

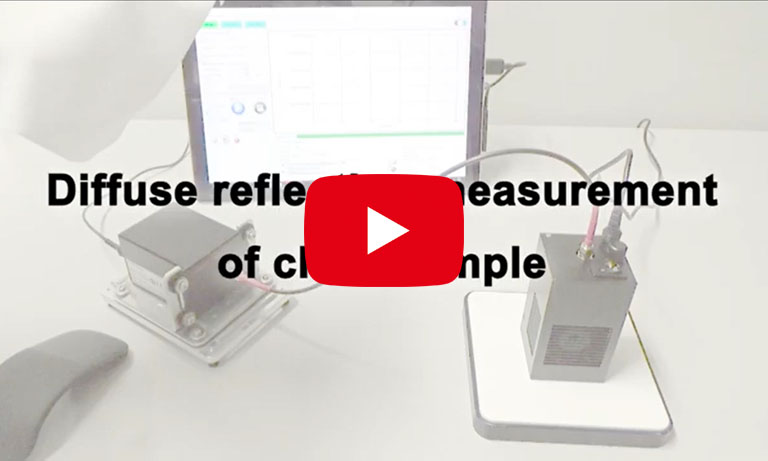

Diffuse reflection measurement of cloth sample
Diffuse reflection measurements of cloth with and without moisture by the FTIR engine are demonstrated.
Stability under vibration
High stability of the FTIR engine under vibration is demonstrated.
