GPXS High reflectance Al plate with CsI scintillator

J13112

J13112 is an X-ray scintillator in the GPXS series consisting of an aluminum plate with CsI scintillator. As a high light output type, J13112 offers an excellent balance of relative light output and CTF compared to the HB (high brightness) type J13113. The standard model has an effective area of 44 mm × 44 mm.

Structure

ScintillatorStructure

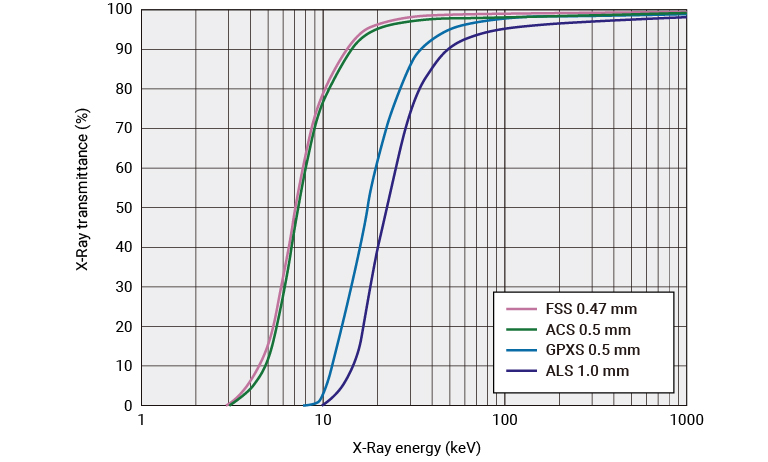

X-ray transmittance

X-RayTransmittance

Specifications

Product Name GPXS
Structure Aluminum Plate with CsI Scintillator
Feature High light output, Large format
Scintillator CsI (Tl)
Outer Dimension 50 x 50 mm
Effective Area 44 x 44 mm
Substrate Thickness 0.5 mm
CsI Thickness 600 μm
Relative Light Output (Typ.) 270 %
CTF (Typ.) 33 (at 3 lp/mm) %
Application Chest examination, Dental CT
