GPXS High reflectance Al plate with CsI scintillator

J13113

J13113 is an X-ray scintillator in the GPXS series consisting of an aluminum plate with CsI scintillator. As an HB (high brightness) type, J13113 provides higher relative light output than the high light output type J13112. The standard model has an effective area of 45 mm × 45 mm.

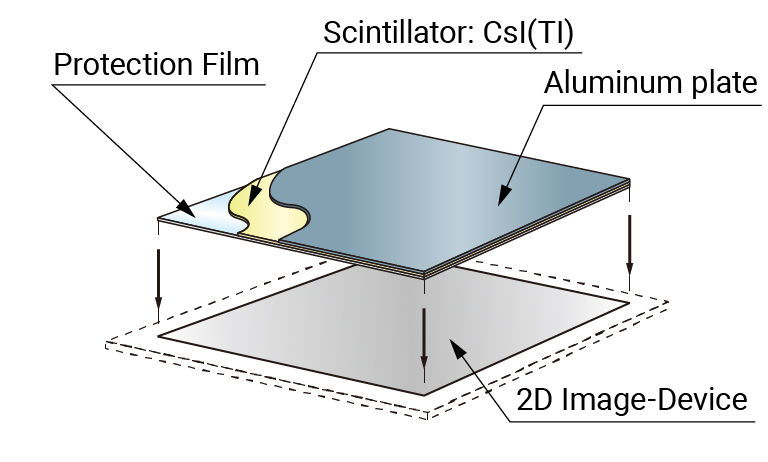

Structure

ScintillatorStructure

X-ray transmittance

X-RayTransmittance

Specifications

Product Name GPXS
Structure Aluminum Plate with CsI Scintillator
Feature High light output, Large format
Scintillator CsI (Tl)
Outer Dimension 50 x 50 mm
Effective Area 45 x 45 mm
Substrate Thickness 0.5 mm
CsI Thickness 400 μm
Relative Light Output (Typ.) 320 %
CTF (Typ.) 33 (at 3 lp/mm) %
Application Chest examination, Dental CT
