Flexible sheet with CsI scintillator

J17765-01

J17765-01 is an X-ray scintillator in the FSS series consisting of an organic film with CsI scintillator. By employing a lightweight organic film with outstanding flexibility, J17765-01 can be easily assembled with image sensors and offers greater design freedom. As an HR (high resolution) type, J17765-01 provides higher CTF than the HL (high light output) type J17765. The standard model has an effective area of 47 mm × 47 mm.

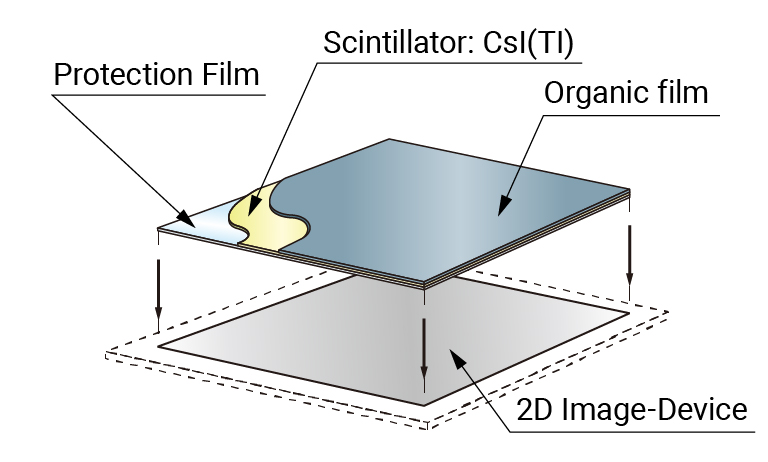

Structure

ScintillatorStructure

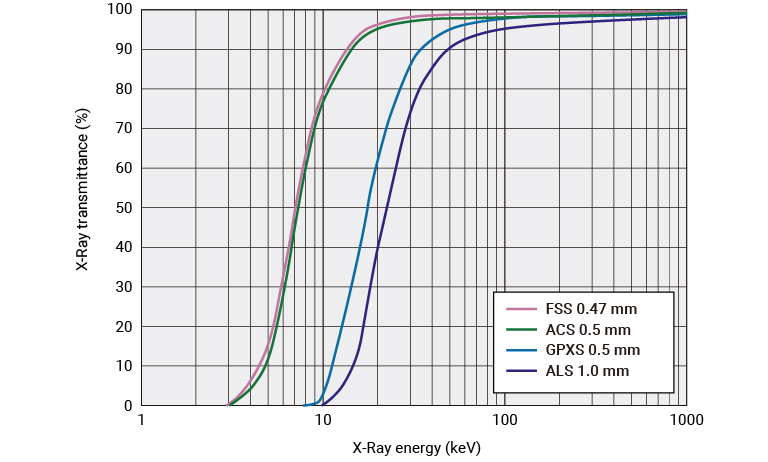

X-ray transmittance

X-RayTransmittance

Specifications

Product Name FSS
Structure Flexible sheet with CsI scintillator
Feature Light weight, Flexibility
Scintillator CsI(Tl)
Outer Dimension 50 x 50 mm
Effective Area 47 x 47 mm
Substrate Thickness 0.32 mm
CsI Thickness 600 μm
Relative Light Output (Typ.) 140 %
CTF (Typ.) 38 (at 3 lp/mm) %
Application Dental inter oral, Dental-panoramic, Mammography
