Flexible sheet with CsI scintillator

J17765

J17765 is an X-ray scintillator in the FSS series consisting of an organic film with CsI scintillator. By employing a lightweight organic film with outstanding flexibility, J17765 can be easily assembled with image sensors and offers greater design freedom. As an HL (high light output) type, J17765 provides higher relative light output than the HR (high resolution) type J17765-01. The standard model has an effective area of 47 mm × 47 mm.

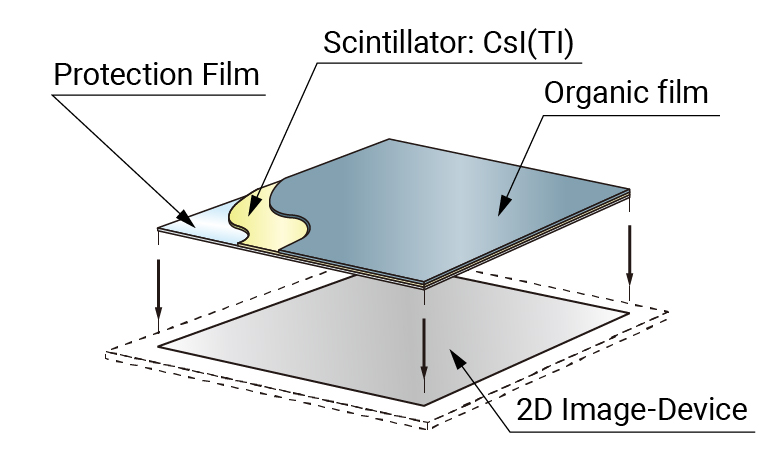

Structure

ScintillatorStructure

X-ray transmittance

X-RayTransmittance

Specifications

Product Name FSS
Structure Flexible sheet with CsI scintillator
Feature Light weight, Flexibility
Scintillator CsI(Tl)
Outer Dimension 50 x 50 mm
Effective Area 47 x 47 mm
Substrate Thickness 0.47 mm
CsI Thickness 600 μm
Relative Light Output (Typ.) 390 %
CTF (Typ.) 30 (at 3 lp/mm) %
Application Dental inter oral, Dental-panoramic, Mammography
