Fiber optic plate with scintillator

J6677-01

J6677-01 is an X-ray scintillator in the FOS series consisting of a fiber optic plate with CsI scintillator. As an HR (high resolution) type, J6677-01 provides higher CTF than the HL (high light output) type J6677. The standard model has an effective area of 46 mm × 46 mm.

Structure

ScintillatorStructure

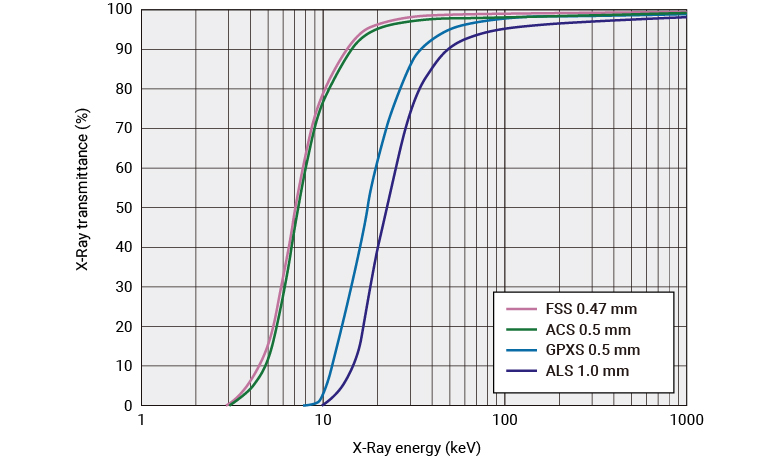

X-ray transmittance

X-RayTransmittance

Specifications

Product Name FOS
Structure FOP with CsI Scintillator
Feature High resolution
Scintillator CsI (Tl)
Outer Dimension 50 x 50 mm
Effective Area 46 x 46 mm
Substrate Thickness 3 mm
CsI Thickness 150 μm
Relative Light Output (Typ.) 40 %
CTF (Typ.) 38 (at 10 lp/mm) %
Application Dental inter oral, Dental-panoramic, Mammography
