Fiber optic plate with scintillator

J6679-01

J6679-01 is an X-ray scintillator in the FOS series consisting of a fiber optic plate with CsI scintillator. As an HR (high resolution) type, J6679-01 provides higher CTF than the HL (high light output) type J6679. The standard model has an effective area of Dia. 23.5 mm.

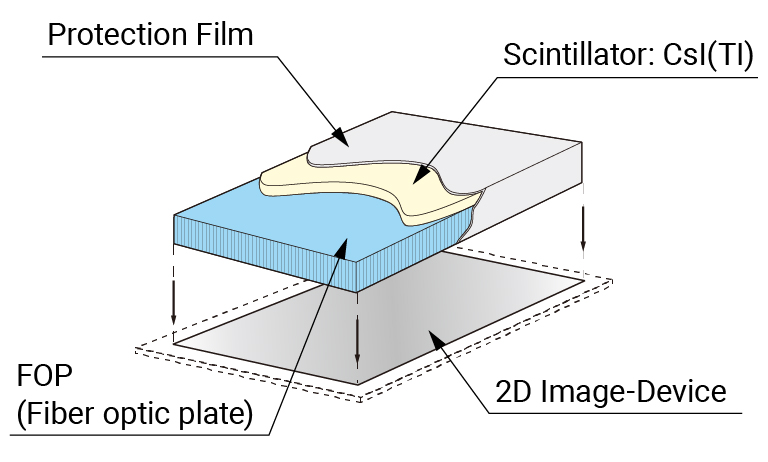

Structure

ScintillatorStructure

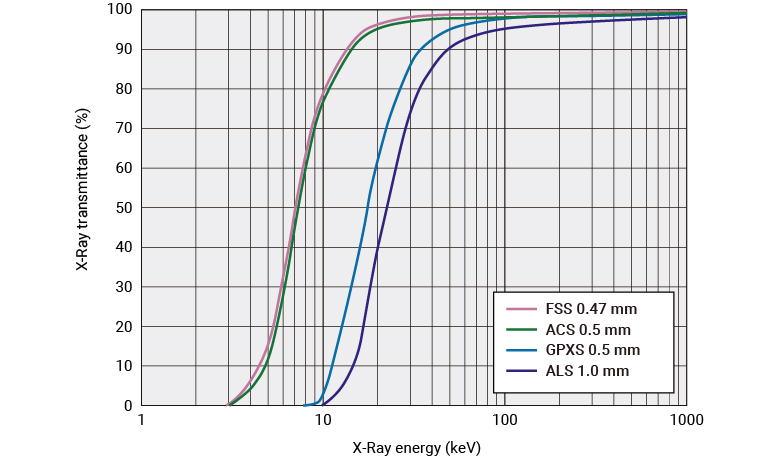

X-ray transmittance

X-RayTransmittance

Specifications

Product Name FOS
Structure FOP with CsI Scintillator
Feature High resolution
Scintillator CsI(Tl)
Outer Dimension Dia. 26.5 mm
Effective Area Dia. 23.5 mm
Substrate Thickness 3 mm
CsI Thickness 150 μm
Relative Light Output (Typ.) 40 %
CTF (Typ.) 38 (at 10 lp/mm) %
Application Dental inter oral, Dental-panoramic, Mammography
