Fiber optic plate with scintillator

J6679

J6679 is an X-ray scintillator in the FOS series consisting of a fiber optic plate with CsI scintillator. As an HL (high light output) type, J6679 provides higher relative light output than the HR (high resolution) type J6679-01. The standard model has an effective area of Dia. 23.5 mm.

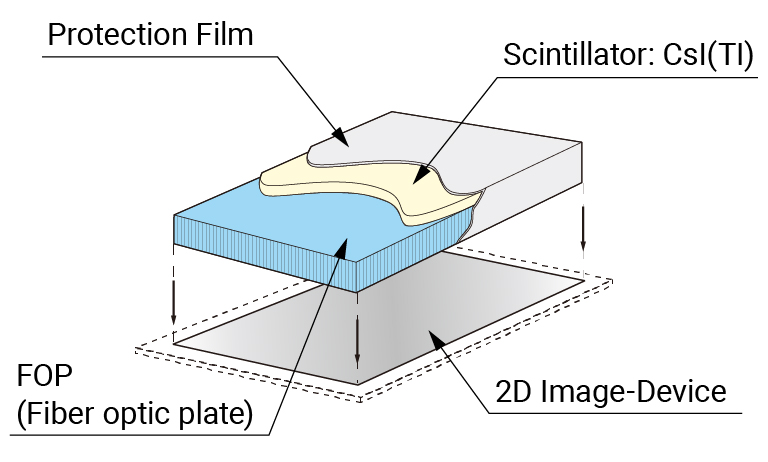

Structure

ScintillatorStructure

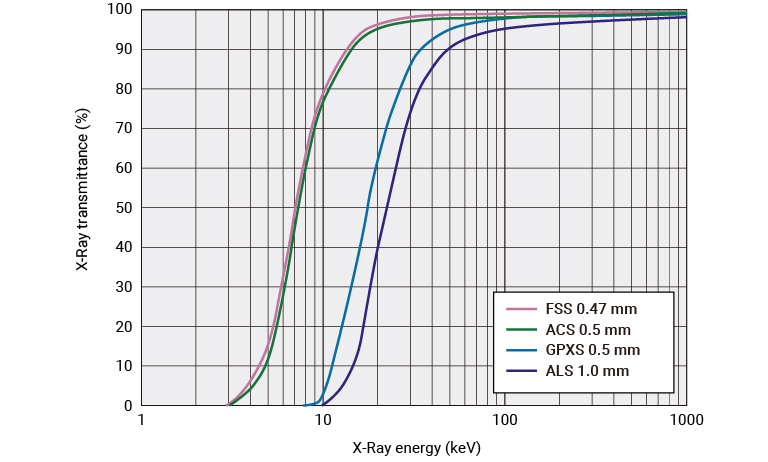

X-ray transmittance

X-RayTransmittance

Specifications

Product Name FOS
Structure FOP with CsI Scintillator
Feature High light output
Scintillator CsI(Tl)
Outer Dimension Dia. 26.5 mm
Effective Area Dia. 23.5 mm
Substrate Thickness 3 mm
CsI Thickness 150 μm
Relative Light Output (Typ.) 70 %
CTF (Typ.) 22 (at 10 lp/mm) %
Application Dental inter oral, Dental-panoramic, Mammography
