a-C plate with CsI scintillator

J8734

J8734 is an X-ray scintillator in the ACS series consisting of an amorphous-carbon plate with CsI scintillator. As an HL (high light output) type, J8734 provides higher relative light output than the HR (high resolution) type J8734-01. The standard model has an effective area of 46 mm × 46 mm.

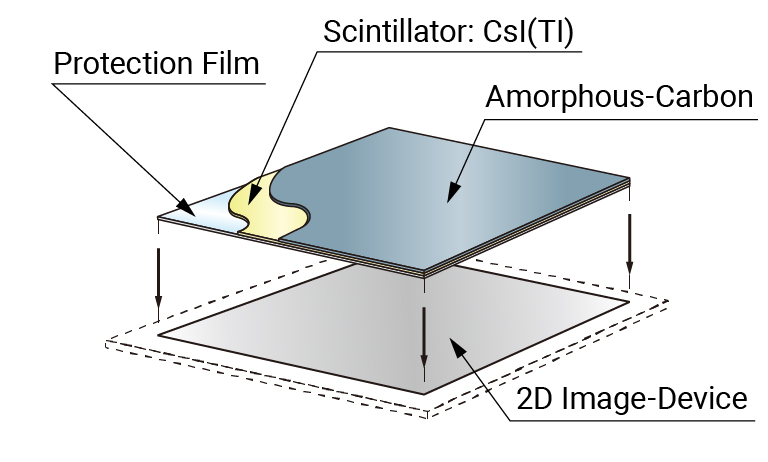

Structure

ScintillatorStructure

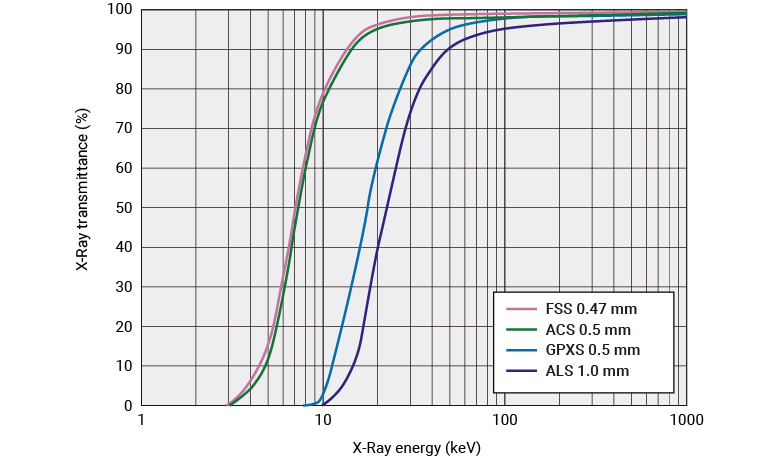

X-ray transmittance

X-RayTransmittance

Specifications

Product Name ACS
Structure Amorphous-Carbon Plate with CsI Scintillator
Feature High light output, Large format
Scintillator CsI (Tl)
Outer Dimension 50 x 50 mm
Effective Area 46 x 46 mm
Substrate Thickness 0.5 mm
CsI Thickness 150 μm
Relative Light Output (Typ.) 125 %
CTF (Typ.) 12 (at 10 lp/mm) %
Application Dental inter oral, Mammography, Chest examination
