Al plate with CsI scintillator

J8978

J8978 is an X-ray scintillator in the ALS series consisting of an aluminum plate with CsI scintillator. It offers a well-balanced combination of relative light output, CTF, flexibility in effective area, and cost. The standard model has an effective area of 44 mm × 44 mm.

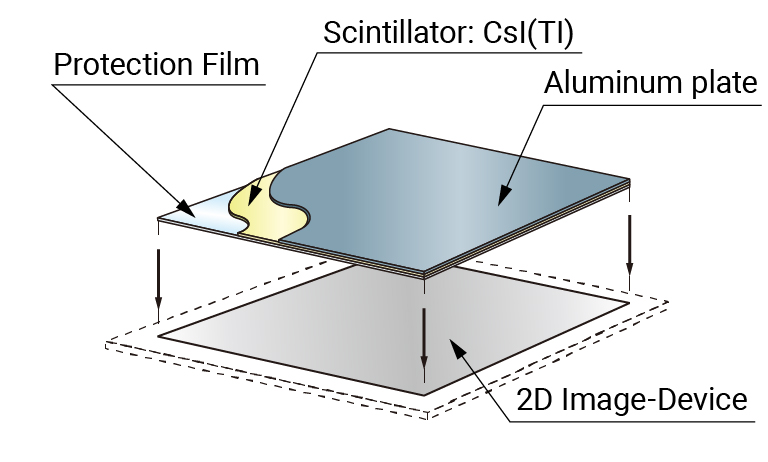

Structure

ScintillatorStructure

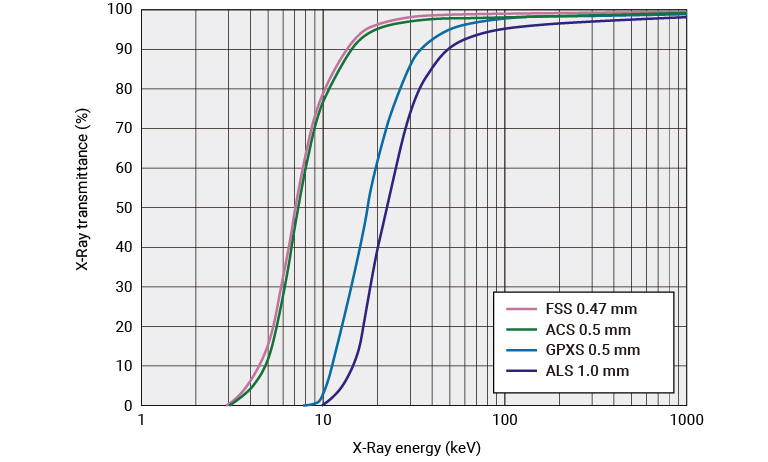

X-ray transmittance

X-RayTransmittance

Specifications

Product Name ALS
Structure Aluminum Plate with CsI Scintillator
Feature High light output, Large format
Scintillator CsI (Tl)
Outer Dimension 50 x 50 mm
Effective Area 44 x 44 mm
Substrate Thickness 1 mm
CsI Thickness 600 μm
Relative Light Output (Typ.) 190 %
CTF (Typ.) 37 (at 3 lp/mm) %
Application Dental-panoramic, Chest examination
