X-ray line scan camera

C14300 series

The X-ray line scan camera C14300 series can take a high-sensitivity, high-resolution transparent X-ray image of an inspected object transported on a belt conveyor or similar apparatus. Since the content of an object, which is not visible with the naked eye, can be inspected without contact or destruction, this camera is suitable for broad interior X-ray observation, enabling the detection of a foreign body mixed in food, electronic components, etc.
C14300 series supports a wide usage, from a thin sample inspection to a thick sample inspection.

Features

  • High speed: Compatible with high speed inspection up to 200 m/min
  • High dynamic range: Enable to detect from low to high X-ray dose
  • Low noise: High S/N imaging with a low X-ray dose
  • Downsizing: Smaller footprint contributes to the smaller inspection system
  • Waterproof / Dustproof: Enable to wash the system with camera on, protected from water and dust

Specifications

Type number C14300-05U C14300-08U C14300-12U
Scintillator Gd-scintillator
Effective X-ray tube voltage range*1 Approx. 25 kV ~ 160 kV
Sensor element pitch 0.4 mm
Detection width*2 256 mm 409.6 mm 614.4 mm
640 pixels 1024 pixels 1536 pixels
Line speed 4 m/min to 200 m/min
Digital interface USB 3.0
Digital output 14 bit
Power supply DC +24 V
Power consumption Approx. 6.5 VA Approx. 8.0 VA Approx. 9.5 VA
Ambient operating temperature 0 ℃ t0 +40 ℃
Ambient operating humidity 30 % to 70 % (With no condensation)
Ambient storage temperature -10 ℃ to +50 ℃
Ambient storage humidity 30 % to 90 % (With no condensation)

*1 Low energy models (C14300-05UL, -08UL, -12UL) are also available. For the details, please contact our sales.
*2 For detection widths other than the above specifications, please contact our sales.

Dimensions

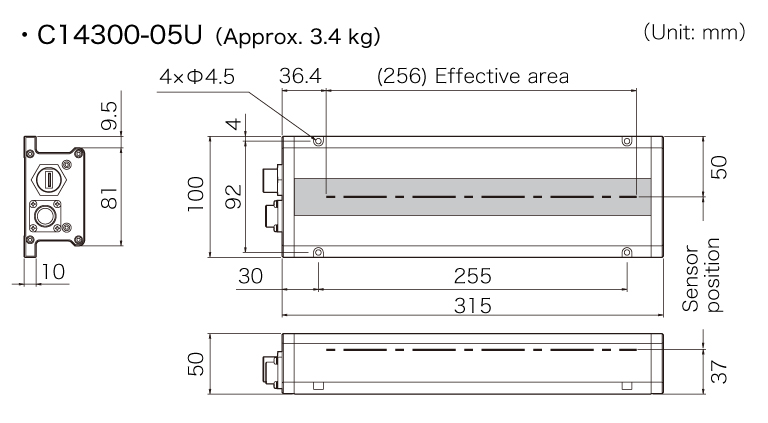

C14300-05U dimensional outline

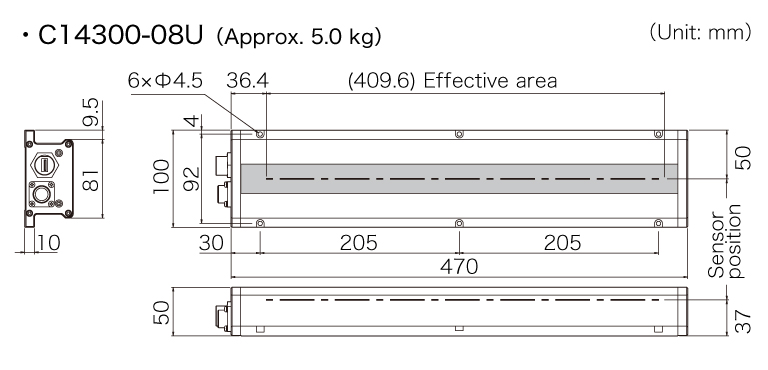

C14300-08U dimensional outline

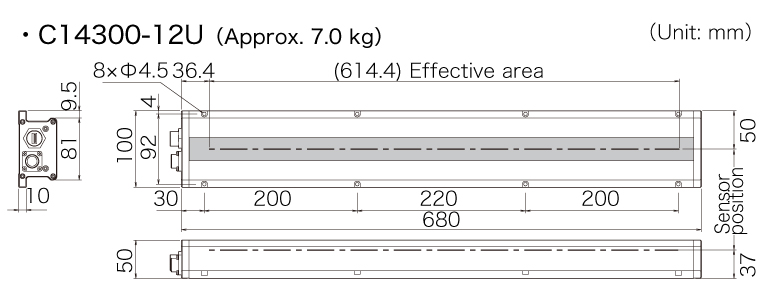

C14300-12U dimensional outline
