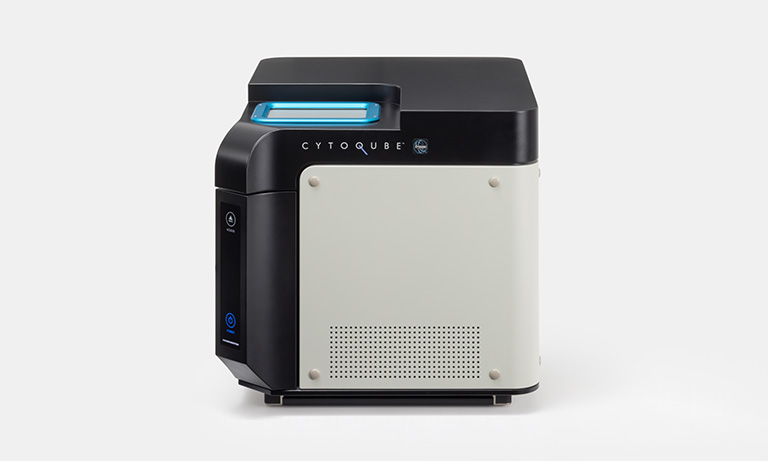

CYTOQUBE Product Image CYTOQUBE Product Image

Zyncscan® technology | Light-Sheet Microplate Cytometer

What is Zyncscan technology ?

The patented Zyncscan technology developed by Hamamatsu Photonics is a new technology that combines optical and image processing technologies based on light-sheet optics.

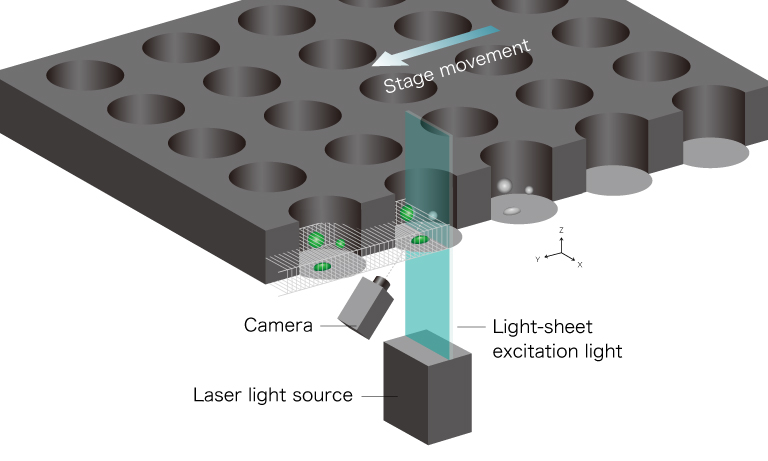

The light-sheet optics of Zyncscan technology emit a sheet of excitation light from directly below the sample and capture XZ tomographic fluorescence images from an oblique downward direction. By continuously acquiring XZ tomographic fluorescence images while moving the microplate in a direction orthogonal to the light-sheet, 3D fluorescence images are constructed within a few minutes per color.

In parallel with the acquisition of XZ tomography fluorescence images, background fluorescence is removed in real time by three-dimensionally separating background fluorescence and sample fluorescence from the actual XZ tomographic fluorescence image acquired.

Zyncscan technology

Example of background fluorescence removal by Zyncscan

CYTOQUBE Background Fluorescence Removal Function Off

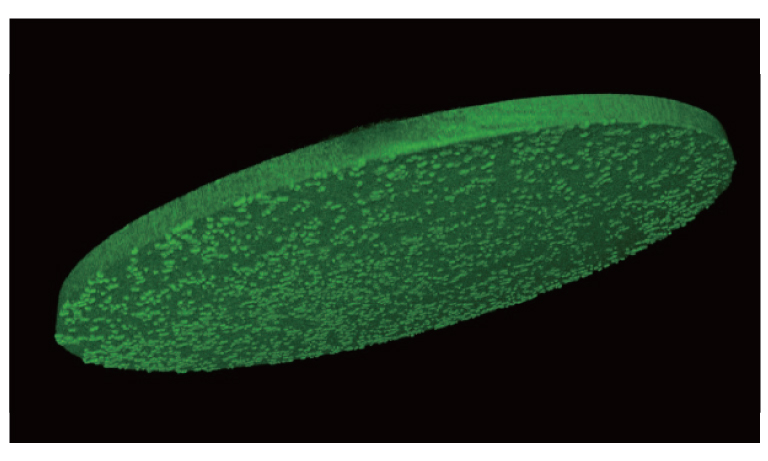

Real-time background separation OFF

CYTOQUBE Background Fluorescence Removal Function ON

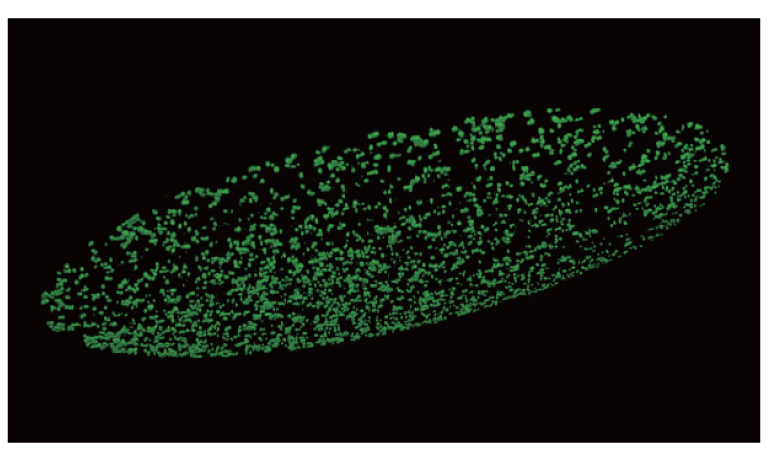

Real-time background separation ON
