These lamp modules integrate a 2 W xenon flash lamp with a power supply and trigger socket, and are designed to extract maximum performance from the lamp. The lamp is available in a housing that has the smallest size among lamps of comparable wattage and operates on a 5 V battery to allow assembly into portable analytical instruments.

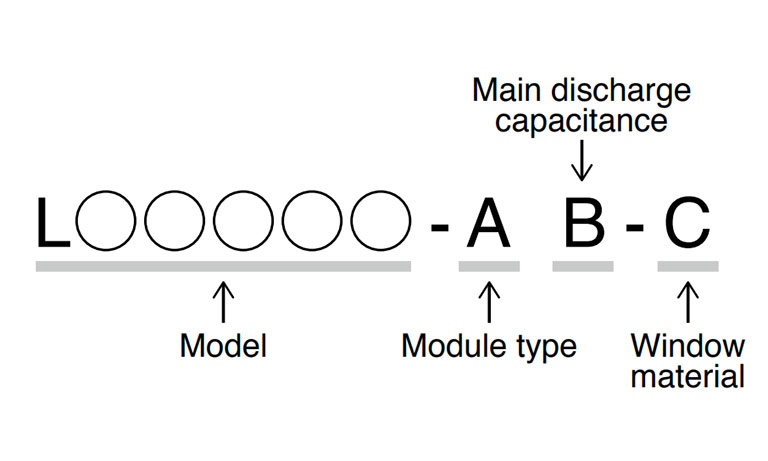

|Parameter||Packaged model||Cylindrical circuit board model||Unit|
|L13651-01 / -02 / -03 / -04
L13651-11 / -12 / -13 / -14
-02-3 / -03-3 / -04-3
|L13821-01 / -02 / -03 / -04|
|Window material||UV glass||MgF2||UV glass||－|

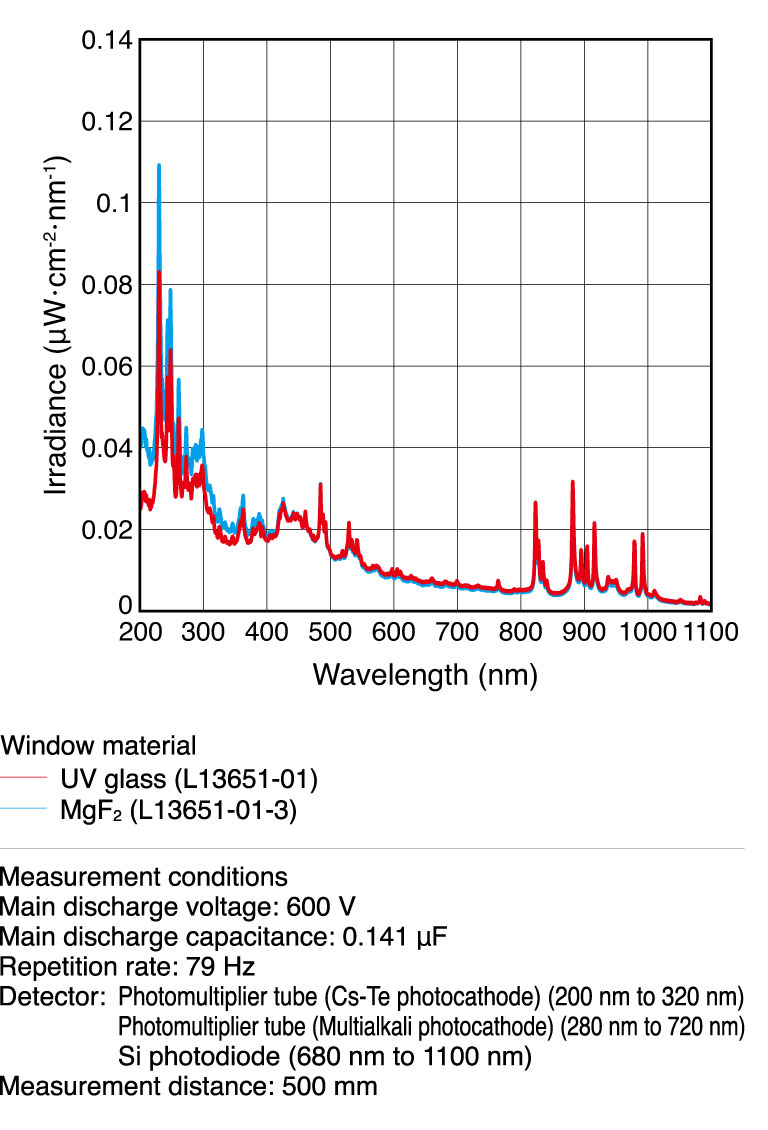

|Spectral distribution||185 to 2500||160 to 7500||185 to 2500||nm|
|Main discharge voltage variable range||Internal (*1)||400 to 600||V|
|External (*2)||400 to 600|
|Main discharge capacitance||0.141 / 0.094 / 0.047 / 0.02||μF|
|Maximum lamp input energy (per flash)||See operating condition examples||mJ|
|Maximum repetition rate||See operating condition examples||Hz|
|Maximum average lamp input (continuous)||See operating condition examples||W|
|Light output stability (*3)||Typ.||0.4||％ CV|

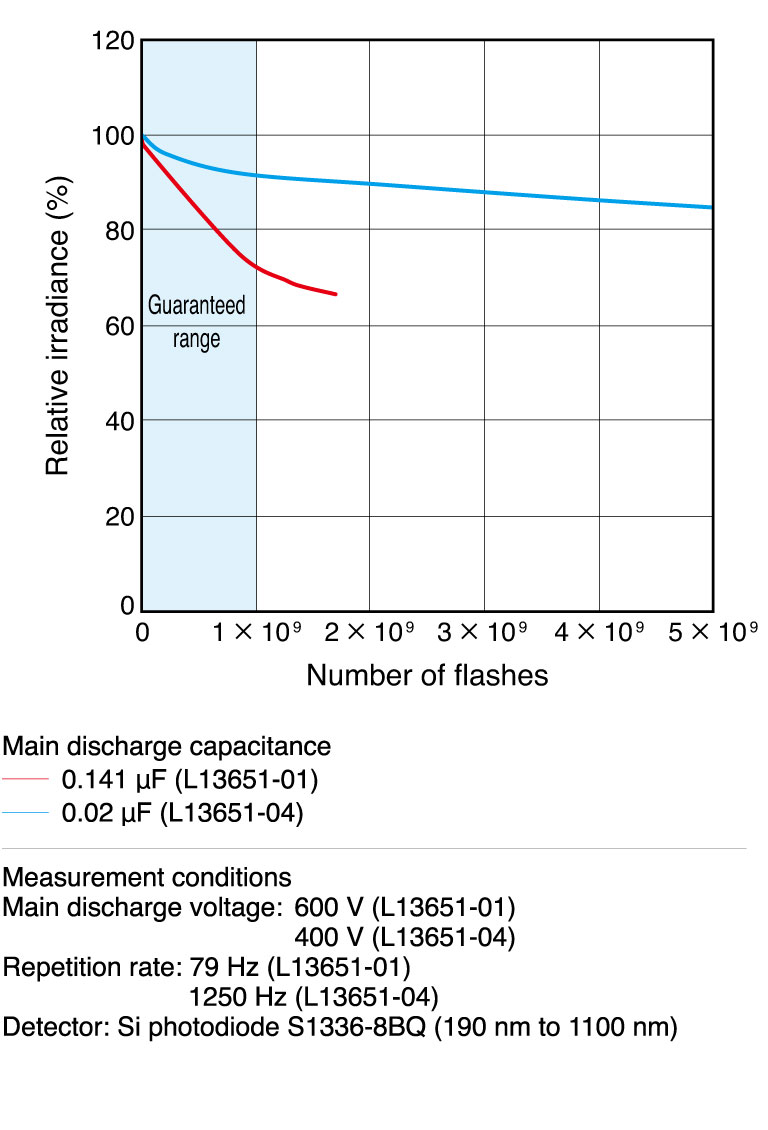

|Guaranteed life (*4)||1 × 109||flashes|
|Operating time when used with battery||4 (*5)||h|
|Input voltage||4.75 to 5.5, 10.8 to 13.2||V|
|Trigger signal||Rectangular wave 2.5 V to 5 V, pulse width 10 μs or more (*6)||－|
|Trigger input impedance||330||Ω|
|Cooling method||Not required (*7)||－|
|Operating temperature range||0 to +40||℃|
|Storage temperature range||-40 to +90||℃|
|Operating humidity range||Below 85 % (no condensation)||－|
|Storage humidity range||Below 95 % (no condensation)||－|
|Applicable standards||EMC standards||IEC/EN 61326-1
Emission limits: CISPR 11 Group 1 Class B
Immunity requirements: Table 1
|Safety standards||IEC/EN 62471 Risk Group 3|
|Environmental standards (RoHS)||IEC/EN 63000|
|Vibration resistance||5 Hz to 200 Hz, 15 m/s2||－|
*1: Internal: Adjustable with a trimmer
*2: External: Variable with control voltage from 3.2 V to 4.8 V
*3: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*4: Measured with a Hamamatsu Si photodiode S1336-8BQ.
The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at 2 W.
*5: Time until the lamp operation stops under the following conditions (spectral irradiance and light output stability are not considered).
Input voltage: 5 V, main discharge voltage: 600 V, main discharge capacitance: 0.141 μF, repetition rate: 79 Hz, battery specs: 5400 mAh / 3.7 V
*6: External trigger only, synchronized at rising edge
*7: Cooling is necessary if the housing temperature exceeds 45 °C during operation.

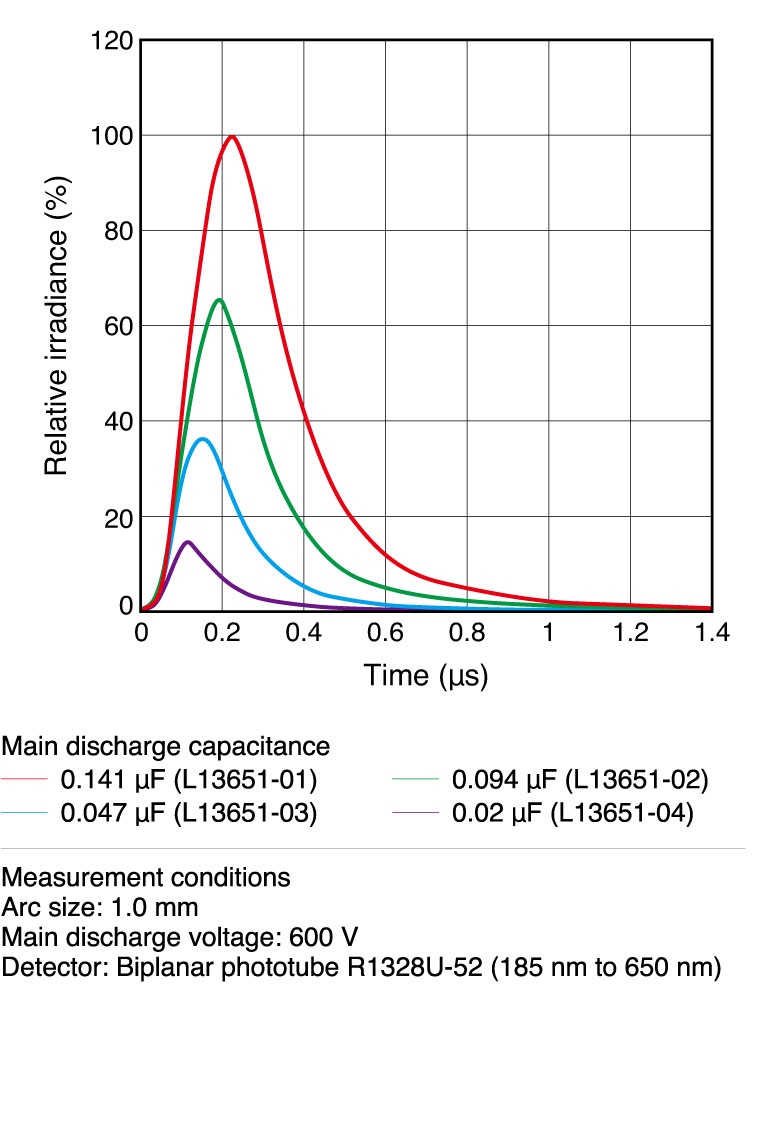

|Type No.||Main discharge capacitance
|Main discharge voltage
|Maximum lamp input energy (per flash)(*8)
|Maximum repetition rate (Hz)(*9)||Maximum average lamp input (continuous) (W)(*10)|
|Input voltage: 4.75 V to 5.5 V||Input voltage: 10.8 V to 13.2 V||Input voltage: 4.75 V to 5.5 V||Input voltage: 10.8 V to 13.2 V|
|L13651-01 / -11
|L13651-02 / -12
|L13651-03 / -13
|L13651-04 / -14
*8: Maximum lamp input energy (per flash) (J)
E ＝ 1/2 × C × V2 C: Main discharge capacitance (F), V: Main discharge voltage (V)
*9: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*10: Maximum average lamp input (continuous) (W)
P = E × f E: Maximum average lamp input energy (per flash) (J), f: Repetition rate (Hz)
