These lamp modules integrate a 5 W xenon flash lamp with a power supply and trigger socket and are designed to extract maximum performance from the lamp, including high luminous efficiency, high stability, and long lifetime.
|Parameter||High stability model||High output model||Unit|
-02 / -11 / -12
|L9456-01 / -02||L11316-01 / -11||L11317-01|
|Window material||UV glass||－|

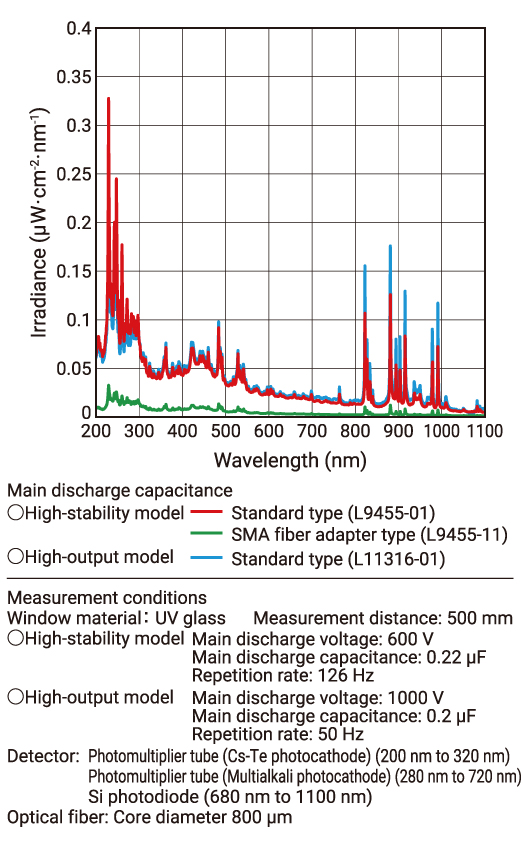

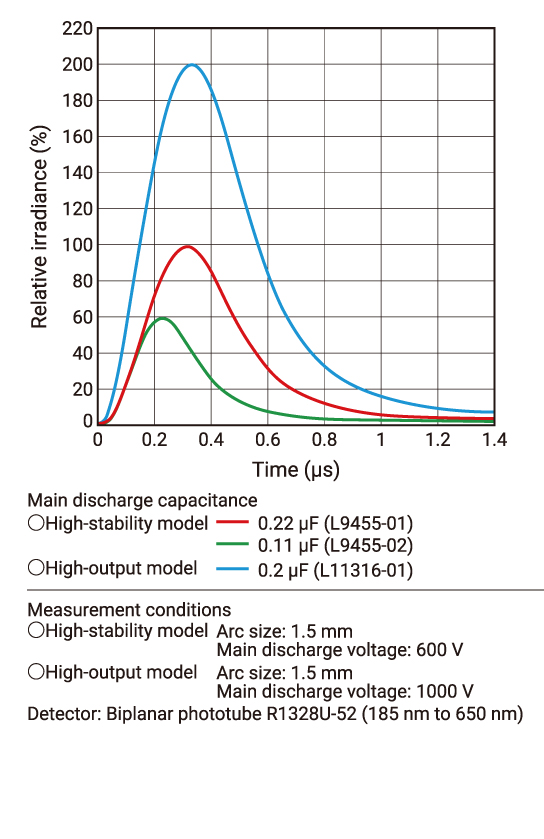

|Spectral distribution||185 to 2500||nm|
|Main discharge voltage variable range||Internal||400 to 600 (*1)||650 to 1000 (*1)||V|
|External||400 to 600 (*2)||500 to 1000 (*3)|
|Main discharge capacitance||0.22 / 0.11||0.2||μF|
|Maximum lamp input energy (per flash)||See operating condition examples||mJ|
|Maximum repetition rate||See operating condition examples||Hz|
|Maximum average lamp input (continuous)||See operating condition examples||W|
|Light output stability (*4)||Typ.||0.4||0.3||0.9||0.4||％ CV|

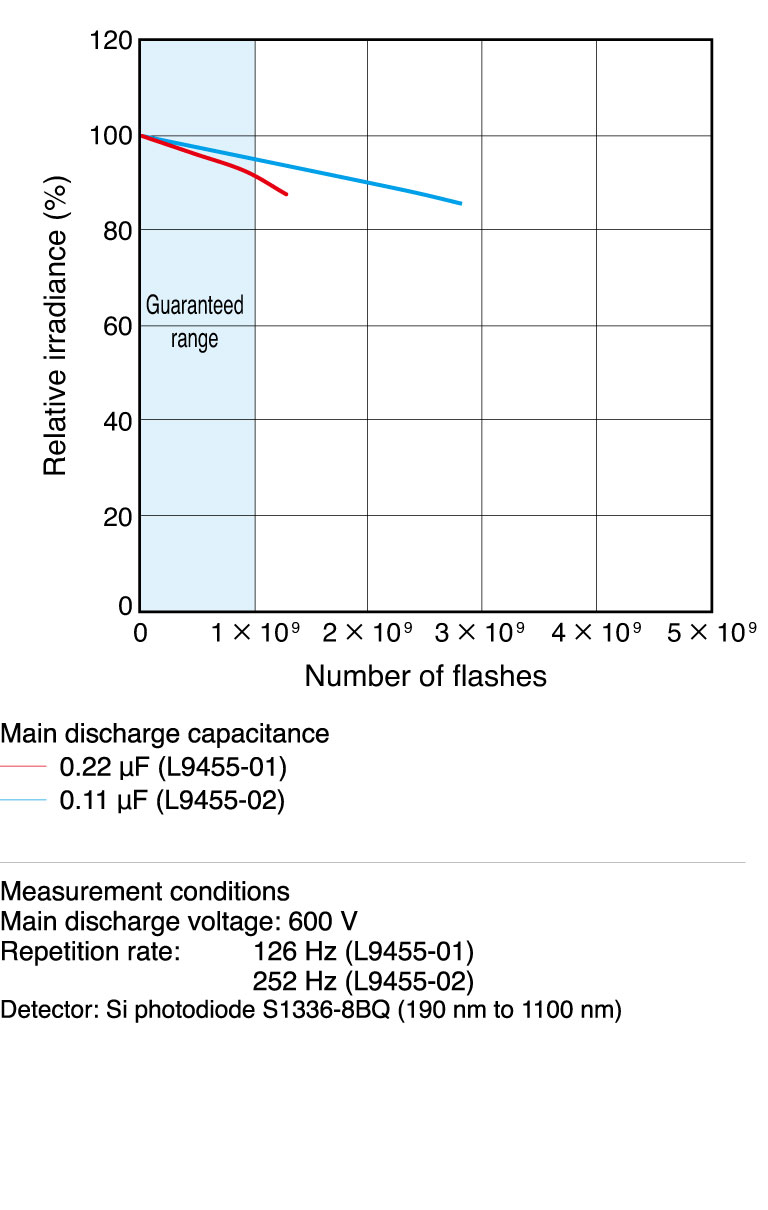

|Guaranteed life (*5)||1 × 109||5 × 108||flashes|
|Input voltage||11 to 28||21.6 to 26.4||V|
|Trigger signal||Rectangular wave 5 V to 10 V, pulse width 10 μs or more (*6)||－|
|Trigger input impedance||330||Ω|
|Cooling method||Not required (*7)||－|
|Operating temperature range||0 to +40||℃|
|Storage temperature range||-40 to +90||℃|
|Operating humidity range||Below 85 % (no condensation)||－|
|Storage humidity range||Below 95 % (no condensation)||－|
|Applicable standards||EMC standards||IEC/EN 61326-1
Emission limits: CISPR 11 Group 1 Class A
Immunity requirements: Table 2
|Safety standards||IEC/EN 62471 Risk Group 3|
|Environmental standards (RoHS)||IEC/EN 63000|
|Vibration resistance||5 Hz to 200 Hz, 15 m/s2||－|
*1: Internal: Adjustable with a trimmer
*2: External: Variable with control voltage from 3.2 V to 4.8 V
*3: External: Variable with control voltage from 2.44 V to 4.88 V
*4: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*5: Measured with a Hamamatsu Si photodiode S1336-8BQ. The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at 5 W.
*6: External trigger only, synchronized at rising edge
*7: Cooling is necessary if the housing temperature exceeds 45 °C during operation.

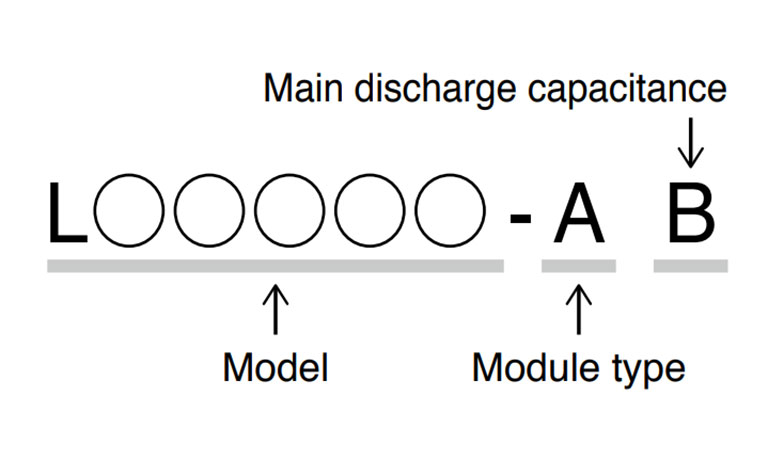

|Type No.||Main discharge capacitance
|Maximum lamp input energy (per flash)(*8)
|Maximum repetition rate(*9)
|Maximum average lamp input (continuous)(*10)
|Ｌ9455-01 / -11
|Ｌ9455-02 / -12
|L11316-01 / -11
*8: Maximum lamp input energy (per flash) (J)
E ＝ 1/2 × C × V2 C: Main discharge capacitance (F), V: Main discharge voltage (V)
*9: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*10: Maximum average lamp input (continuous) (W)
P = E × f E: Maximum average lamp input energy (per flash) (J), f: Repetition rate (Hz)
