optical block optical block

Connection example | Optical blocks

Compatible PMT module

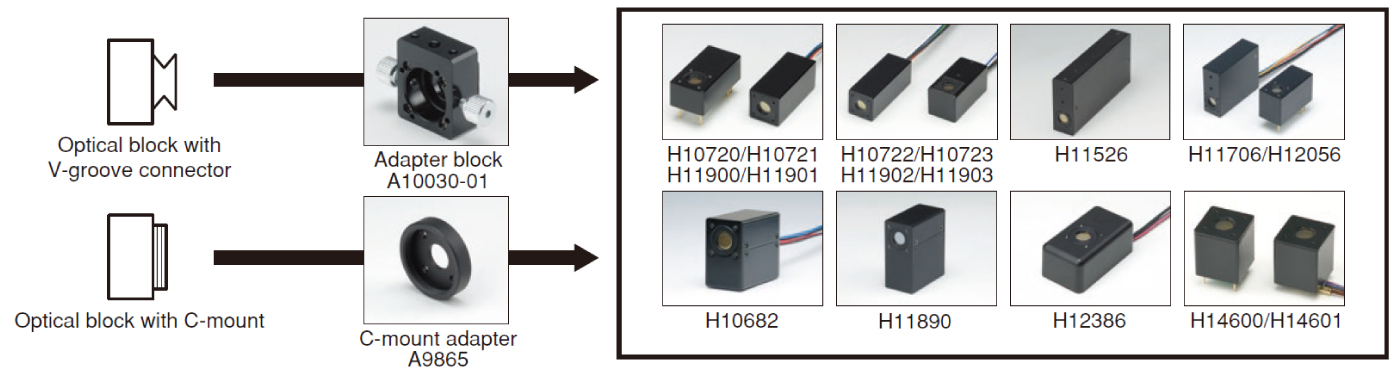

Screw connection with PMT module

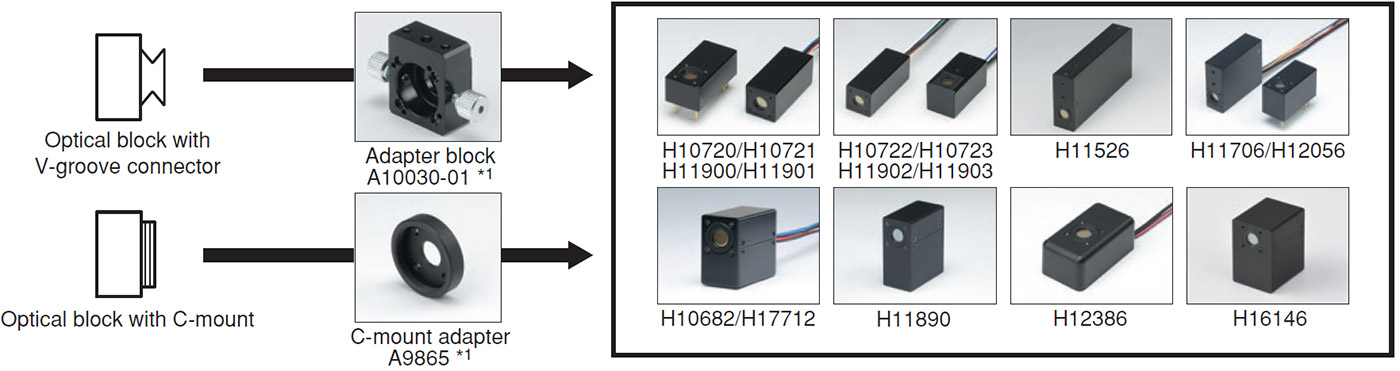

*1 Can be connected to PMT modules that have M2 mounting screw holes on a 14 mm x 14 mm area.

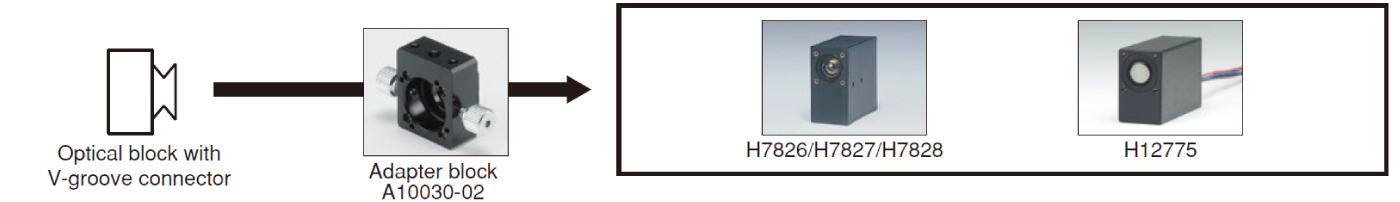

*2 Can be connected to PMT modules that have M2 mounting screw holes on a 18 mm x 18 mm area.

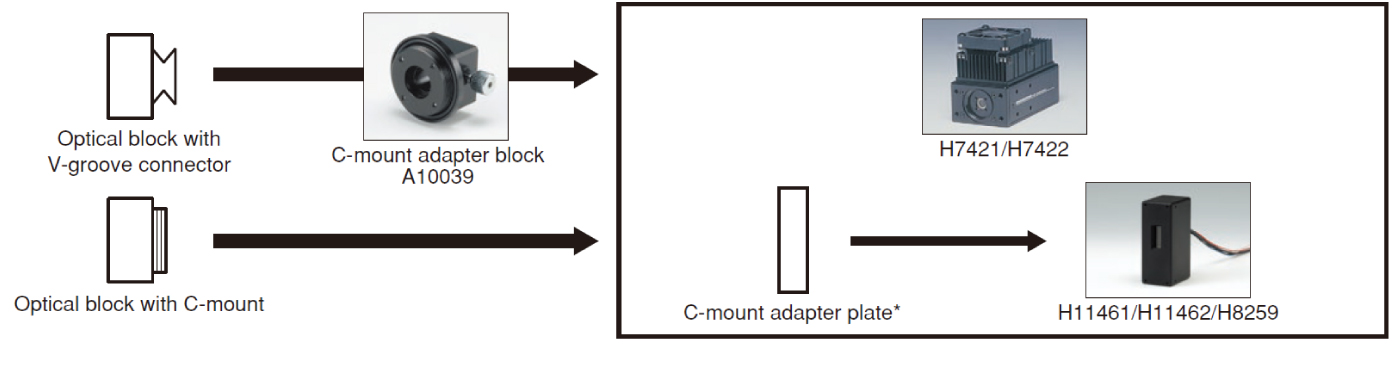

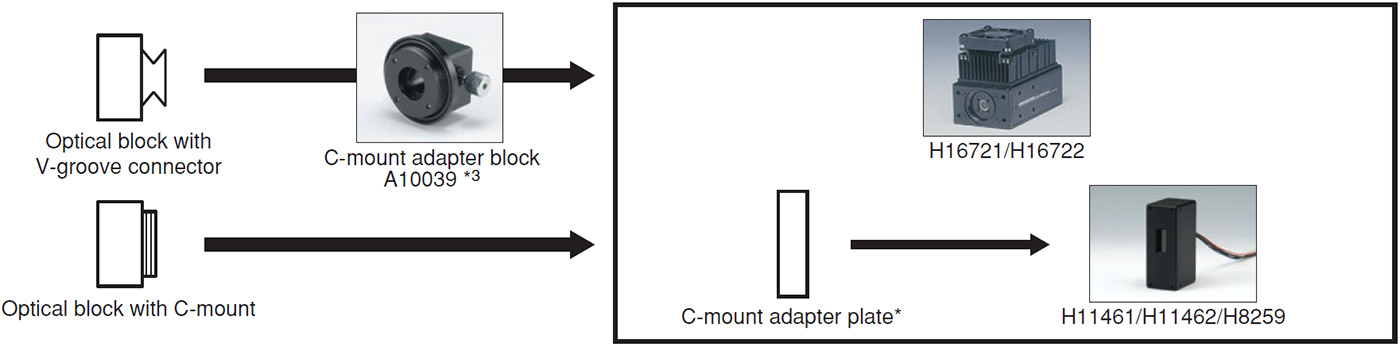

C-mount connection with PMT module

*3 Can be connected to PMT modules with a C-mount interface.

* In preparation for use with optical blocks, a C-mount adapter plate must be attached to the PMT module.Please notify us of your need for this adapter when ordering.

Contact us for more information.
