|Type||Short wavelength type
(Low bias operation)
|Photosensitive area||φ0.5 mm|
|Peak sensitivity wavelength (typ.)||620 nm|
|Spectral response range||200 to 1000 nm|

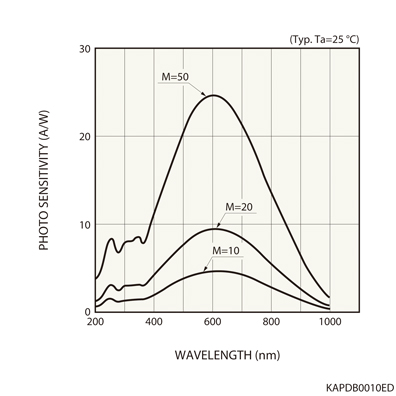

|Photosensitivity (typ.)||0.42 A/W|
|Dark current (max.)||5 nA|
|Cutoff frequency (typ.)||400 MHz|
|Terminal capacitance (typ.)||7 pF|
|Breakdown voltage (typ.)||150 V|
|Temperature coefficient of breakdown voltage (typ.)||0.14 V/℃|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=620 nm, M=1
