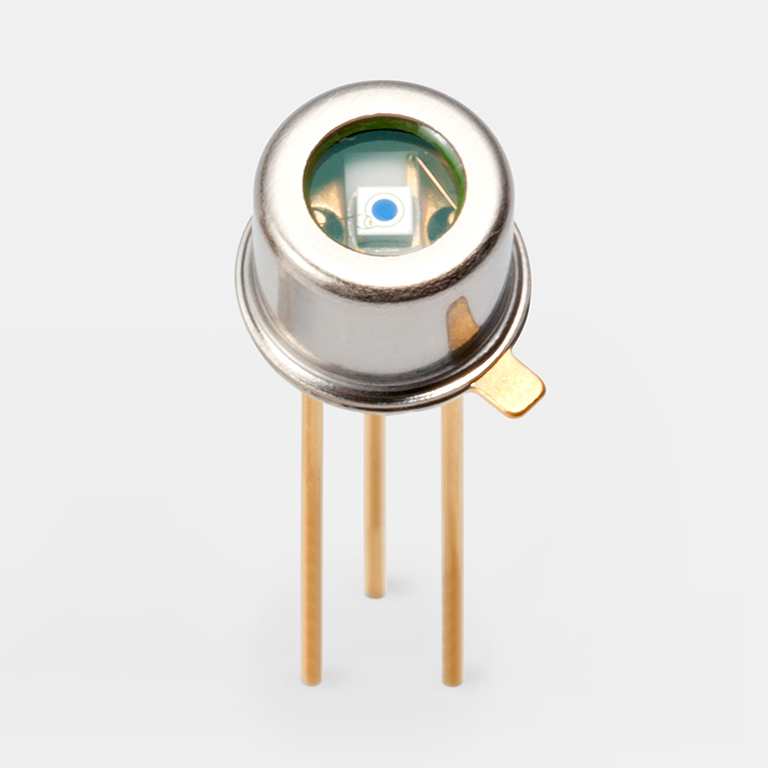

Low bias, high-speed Si APD for 900 nm


The S12426 series Si APD are designed to provide a peak sensitivity wavelength in the 900 nm band where optical rangefinders are increasingly used. The S12426 series delivers faster response and lower bias operation than our existing Si APD (S9251 series).

- Peak sensitivity wavelength: 840 nm (gain=100)
- Low bias operation: Breakdown voltage=200 V max.
- High-speed response: Cutoff frequency=650 MHz typ. (S12426-02, λ=900 nm, M=100)


Type High-speed type
(for 900 nm, Low bias operation)
Photosensitive area φ0.2 mm
Package Metal
Package Category TO-18
Peak sensitivity wavelength (typ.) 840 nm
Spectral response range 400 to 1100 nm
Photosensitivity (typ.) 0.52 A/W
Dark current (max.) 1 nA
Cutoff frequency (typ.) 650 MHz
Terminal capacitance (typ.) 0.5 pF
Breakdown voltage (typ.) 160 V
Temperature coefficient of breakdown voltage (typ.) 1.1 V/℃
Gain (typ.) 100
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=900 nm, M=1

Spectral response

Dimensional outline (unit: mm)
