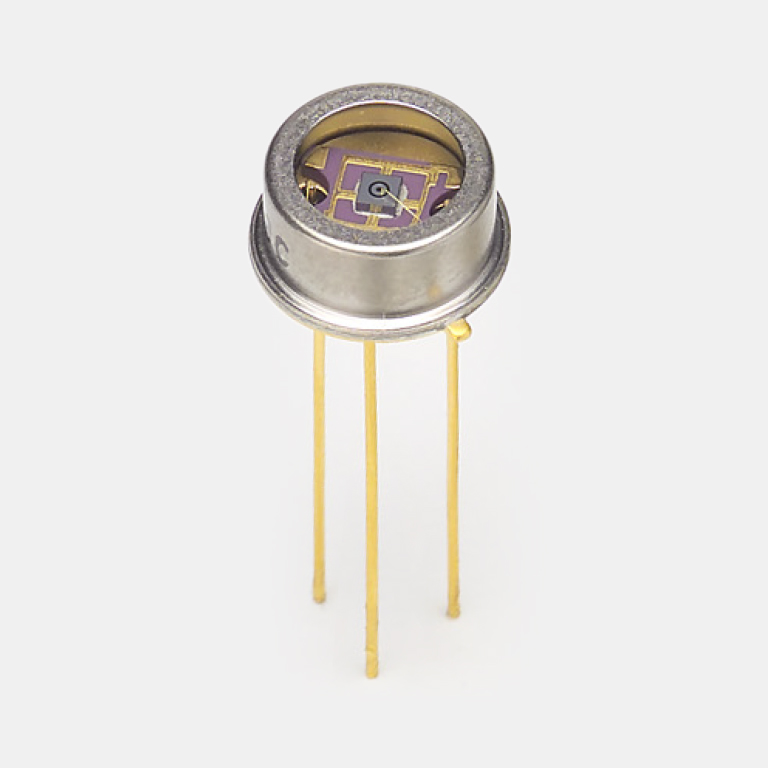

Si APD

S8664-05K

Short wavelength type APD


Features
-High sensitivity at visible range
-Low noise
-High gain
-Low capacitance

Type Short wavelength type
(low terminal capacitance)
Photosensitive area φ0.5 mm
Package Metal
Package Category TO-5
Peak sensitivity wavelength (typ.) 600 nm
Spectral response range 320 to 1000 nm
Photosensitivity (typ.) 0.24 A/W
Dark current (max.) 1.5 nA
Cutoff frequency (typ.) 680 MHz
Terminal capacitance (typ.) 1.6 pF
Breakdown voltage (typ.) 400 V
Temperature coefficient of breakdown voltage (typ.) 0.78 V/℃
Gain (typ.) 50
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=420 nm, M=1

Spectral response

Dimensional outline (unit: mm)
