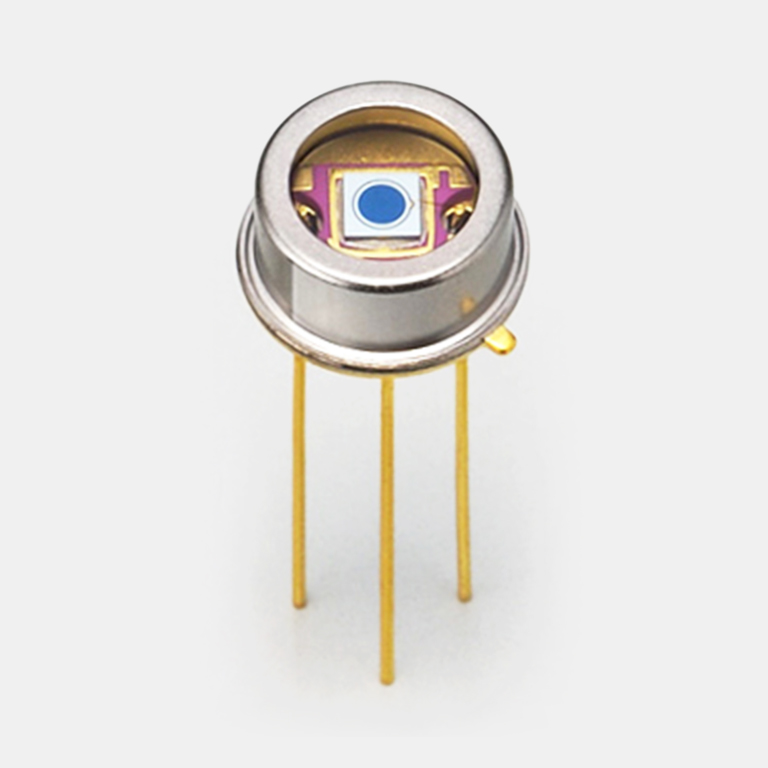

|Type||Near infrared type
(900 nm band, low terminal capacitance)
|Photosensitive area||φ1 mm|
|Peak sensitivity wavelength (typ.)||860 nm|
|Spectral response range||440 to 1100 nm|
|Photosensitivity (typ.)||0.52 A/W|
|Dark current (max.)||4 nA|
|Cutoff frequency (typ.)||380 MHz|
|Terminal capacitance (typ.)||1.9 pF|
|Breakdown voltage (typ.)||250 V|
|Temperature coefficient of breakdown voltage (typ.)||1.85 V/℃|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=900 nm, M=1
