CMOS linear image sensor

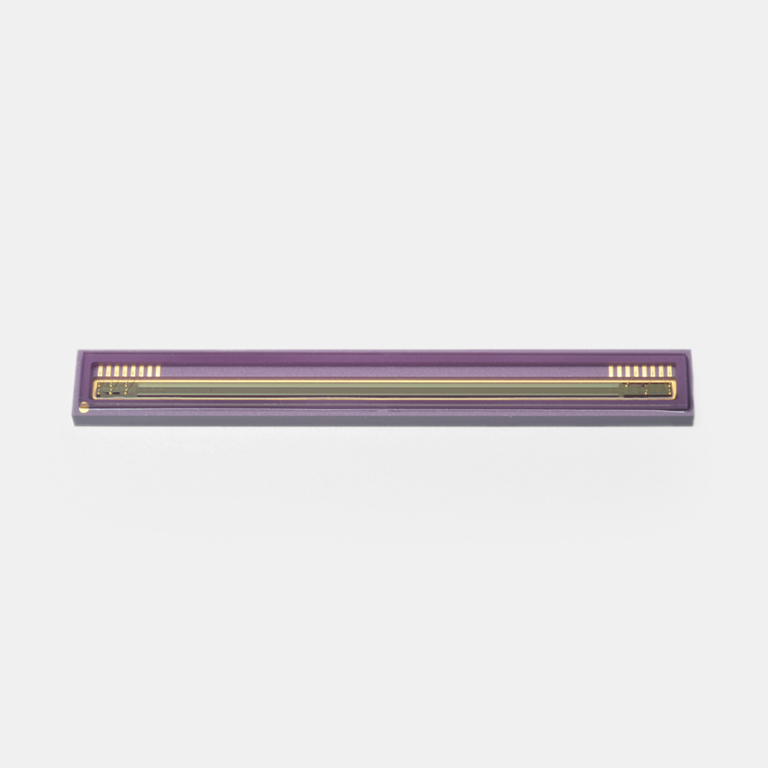

The S11639-01 is a high sensitivity CMOS linear image sensor using a photosensitive area with vertically long pixels (14 × 200 μm). Other features include high sensitivity and high resistance in the UV region. The S11639-01 operates from a single 5 V supply making it suitable for use in low cost spectrometers.
Light from a broadband wavelength light source is shone on the sample, the interference light spectrally dispersed, then detected by a linear image sensor. An image in the depth direction of the sample is acquired by Fourier transforming the obtained wavelength information.
This linear image sensor with rectangular pixels, high line rate, and a global shutter function is appropriate for absolute track reading of linear encoders.
|Type||High sensitivity type|
|Image size||28.672 x 0.200 mm|
|Number of effective pixels||2048 x 1 pixels|
|Pixel size||14 x 200 μm|
|Spectral response range||200 to 1000 nm|
|Line rate (max.)||4672 lines/s|
|Measurement condition||Typ. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=10 MHz, unless otherwise noted|
