Si PIN photodiode
|Photosensitive area||3.6 × 3.6 mm|
|Number of elements||1|
|Reverse voltage (max.)||30 V|

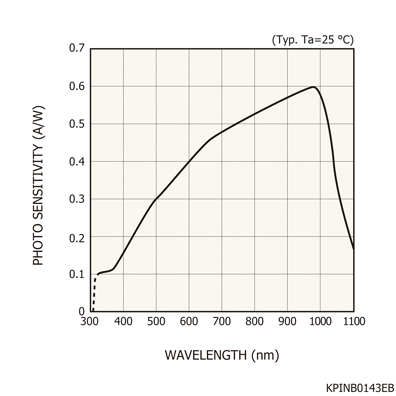

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.52 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||20 MHz|
|Terminal capacitance (typ.)||20 pF|
|Noise equivalent power (typ.)||1.3×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=20 V, Cutoff frequency: VR=20 V, Terminal capacitance: VR=20 V, f=1 MHz, Noise equivalent power: VR=20 V, λ=λp, unless otherwise noted|
