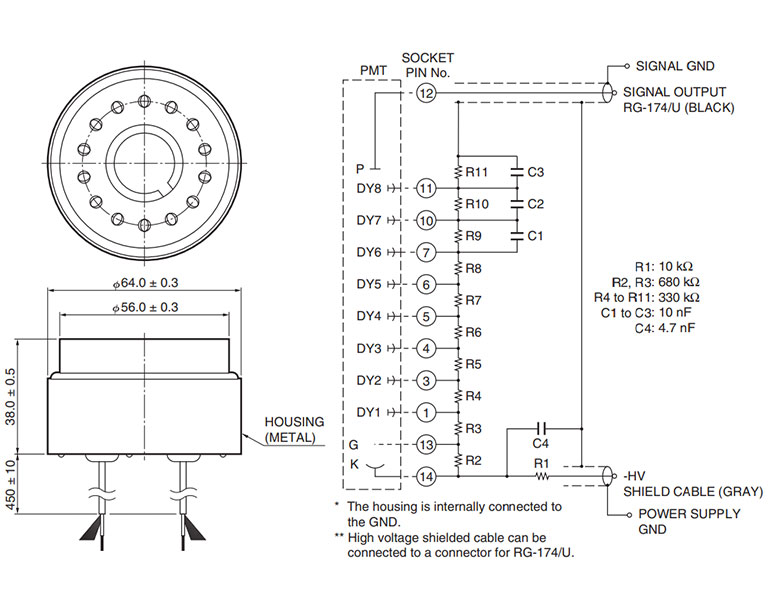

D-type socket assembly

E1198-26

For 51mm, 76mm dia. Head-on PMT

Specifications

Applicable PMT 51 mm, 76 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1500 V
[Max. Rating] Voltage Divider Current 0.38 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.01 MΩ
Max. Linear Output in DC Mode 18 (at 1500 V) μA
