HV power supply module
Compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes.
|Input Voltage||15 V|
|Input Current (with no load) Typ.||45 mA|
|Input Current (with full load) Typ.||180 mA|
|Max. Output Voltage||-1500 V|
|Max. Output Current||1 mA|
|Specification Guaranteed Output Voltage Range||-240 to -1500 V|
|Line Regulation||±0.01 (against ±1V input change) %|
|Load Regulation||±0.01 %|
|Ripple/Noise||5 (＞5kHz), 8 (<=5kHz) mV|
|Temperature Coefficient||±0.005 %/℃|
|Operating Ambient Temperature||0 to +50 ℃|
|Operating Ambient Humidity||Below 80 %|
|Storage Temperature||-20 to +60 ℃|
|Storage Humidity||Below 80 %|

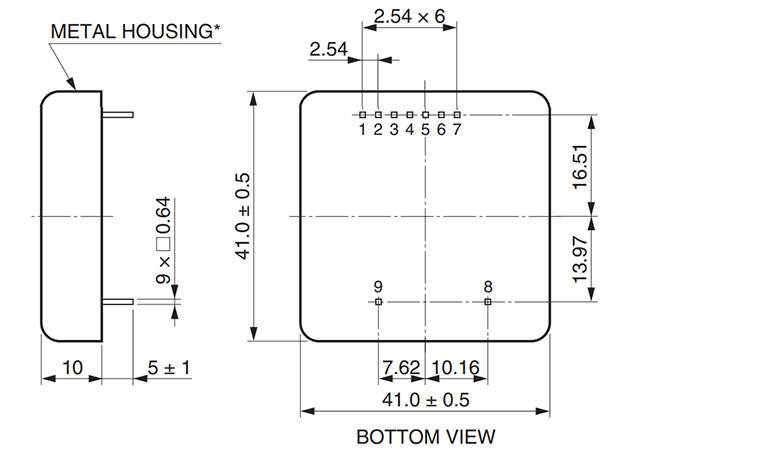

|Dimensions (W x H x D)||41 x 10 x 41 mm|
