D-type socket assembly

E5996

Metal Package R7600U Series

Applicable PMT Metal package R7600U series
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 900 V
[Max. Rating] Supply Voltage 900 V
[Max. Rating] Voltage Divider Current 0.33 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 2.75 MΩ
Max. Linear Output in DC Mode 16 μA (at 900 V)

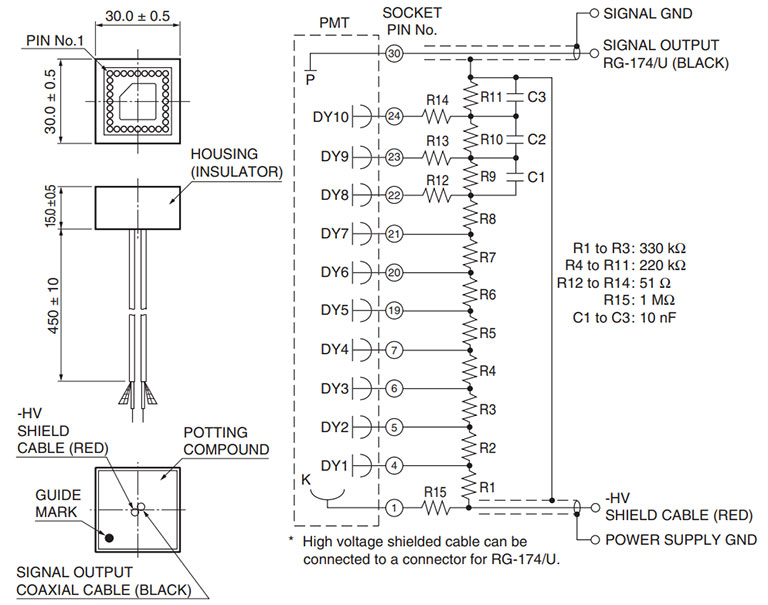

Dimensional outline (Unit: mm)
