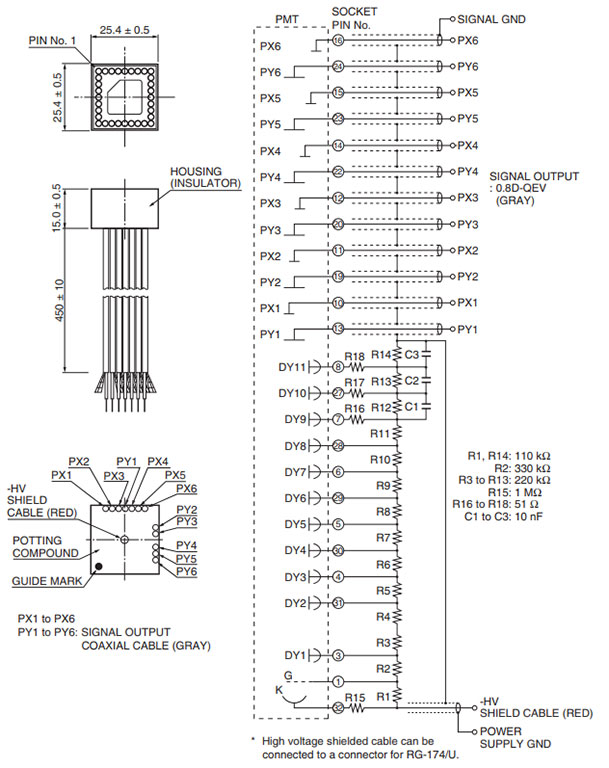

D-type socket assembly
For Metal Package PMT R8900U-C12, Grounded electrode : Anode, Supply voltage polarity : -
|Applicable PMT||Metal Package PMT R8900U-C12|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1000 V|
|[Max. Rating] Supply Voltage||1000 V|
|[Max. Rating] Voltage Divider Current||0.34 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||2.97 MΩ|
|Max. Linear Output in DC Mode||1.4 μA (at 1000 V)|
|Signal Output||DC / Pulse|
