28mm dia., Side-on type, Bialkali photocathode (Effective area : 8 mm x 24 mm /Spectral response : 185 nm to 750 nm)
|Type No.||Peak Wavelength||Cathode Luminous
|R3788||420 nm||120 µA/lm||10||1200 A/lm|
|R11540||420 nm||190 µA/lm||16||1900 A/lm|

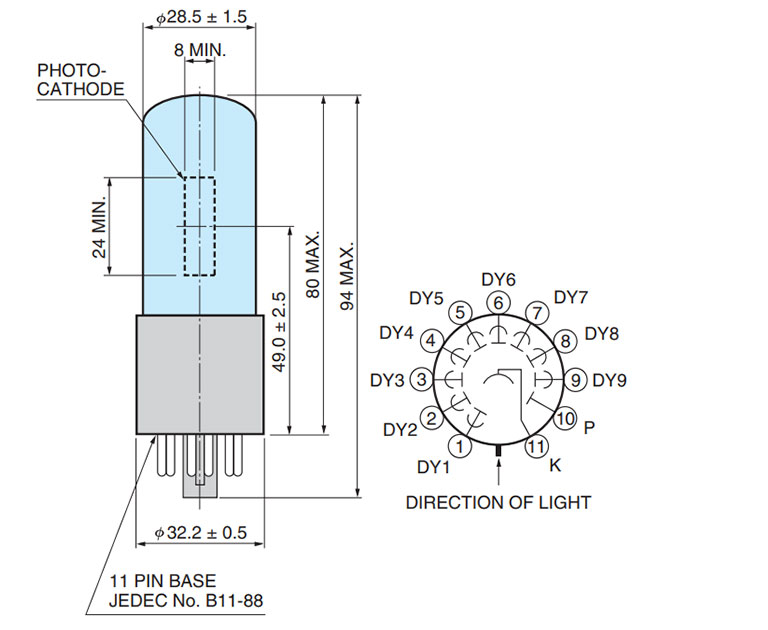

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||8 mm x 24 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||750 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||452U|
|Window Material||UV glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||100 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||120 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||10|
|[Cathode] Red/White Ratio (R-68) Typ.||0.01|
|[Cathode] Radiant Sensitivity Typ.||90 mA/W|
|[Anode] Luminous Sensitivity Min.||500 A/lm|
|[Anode] Luminous Sensitivity Typ.||1200 A/lm|
|[Anode] Radiant Sensitivity Typ.||9.0 x 105 A/W|
|[Anode] Gain Typ.||1.0 x 107|
|[Anode] Dark Current (after 30min.) Typ.||5 nA|
|[Anode] Dark Current (after 30min.) Max.||50 nA|
|[Time Response] Rise Time Typ.||2.2 ns|
|[Time Response] Transit Time Typ.||22 ns|
