For UV to near IR (200 to 800 nm), High resolution type


TM series mini-spectrometers are polychromators integrated with optical elements, an image sensor and a driver circuit. Light to be measured is guided into the entrance port of TM series through an optical fiber and the spectrum measured with the built-in image sensor is output from the USB port to a PC for data acquisition. They are high sensitivity mini-spectrometers employing a back-thinned type CCD image sensor. Their sensitivity is about two orders of magnitudes higher than CMOS type making TM series even more ideal for low-light-level measurement. The C10082CAH is high resolution type (spectral resolution: 1 nm Typ.). Mini-spectrometer TM series comes supplied with free evaluation software that allows setting measurement conditions, acquiring and saving data, and displaying graphs. Original measurement software can be designed on an end-user’s side as DLL’s function specifi cation is disclosed.

- Integrated with back-thinned type CCD image sensor
- High resolution: 1 nm
- Variable spectral resolution by selecting slit width and NA
- High throughput due to transmission grating made of quartz
- Easy to install into equipment
- Wavelength conversion factor is recorded in internal memory.
- Supprts external trigger input

Spectral response range 200 to 800 nm
Spectral resolution (FWHM) (typ.) 1 nm
Spectral resolution (FWHM) (max.) 2 nm
Cooling Non-cooled
A/D resolution 16 bits
Interface USB 1.1
Built-in sensor Back-thinned CCD image sensor
Number of total pixels 2048 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

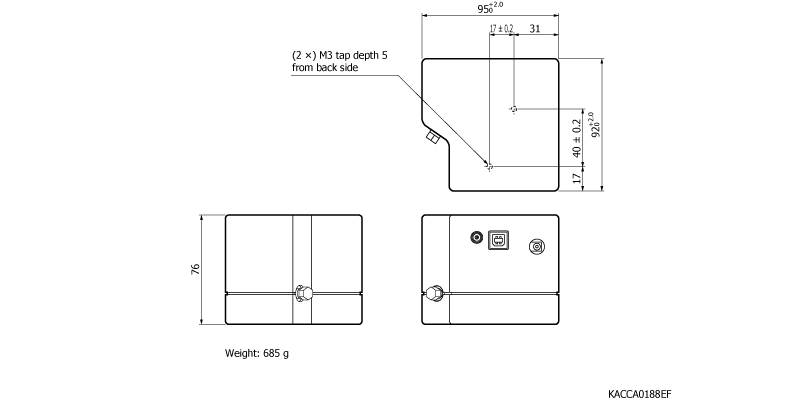

Dimensional outline (unit: mm)
