For UV to near IR (200 to 800 nm), Wide dynamic range type



TM series mini-spectrometers are polychromators integrated with optical elements, an image sensor and a driver circuit. Light to be measured is guided into the entrance port of TM series through an optical fiber and the spectrum measured with the built-in image sensor is output from the USB port to a PC for data acquisition. No external power supply is required since USB bus power is used for circuit operation. The TM series comes with sample software, device driver and DLL. The sample software lets you easily set measurement conditions, acquire and save data, and display graphs.

- High throughput due to transmission grating made of quartz
- Highly accurate optical characteristics
- No external power supply required: Uses USB bus power
- Wide spectral response range
- Easy to install into equipment


Spectral response range 200 to 800 nm
Spectral resolution (FWHM) (typ.) 4 nm
Spectral resolution (FWHM) (max.) 6 nm
Cooling Non-cooled
A/D resolution 16 bits
Interface USB 1.1
Built-in sensor CMOS linear image sensor
Number of total pixels 1024 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

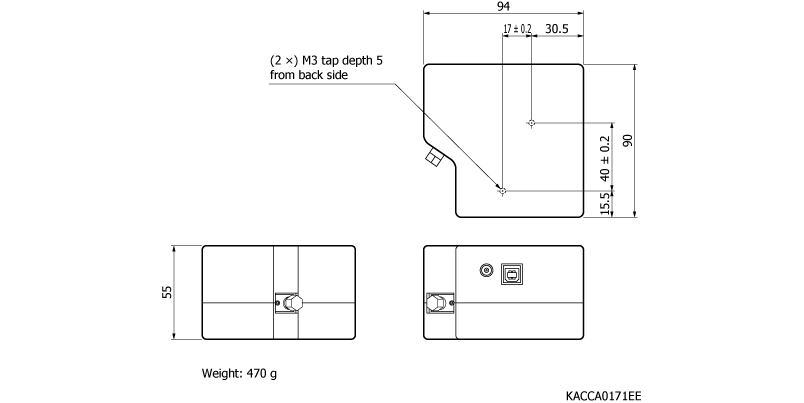

Dimensional outline (unit: mm)
