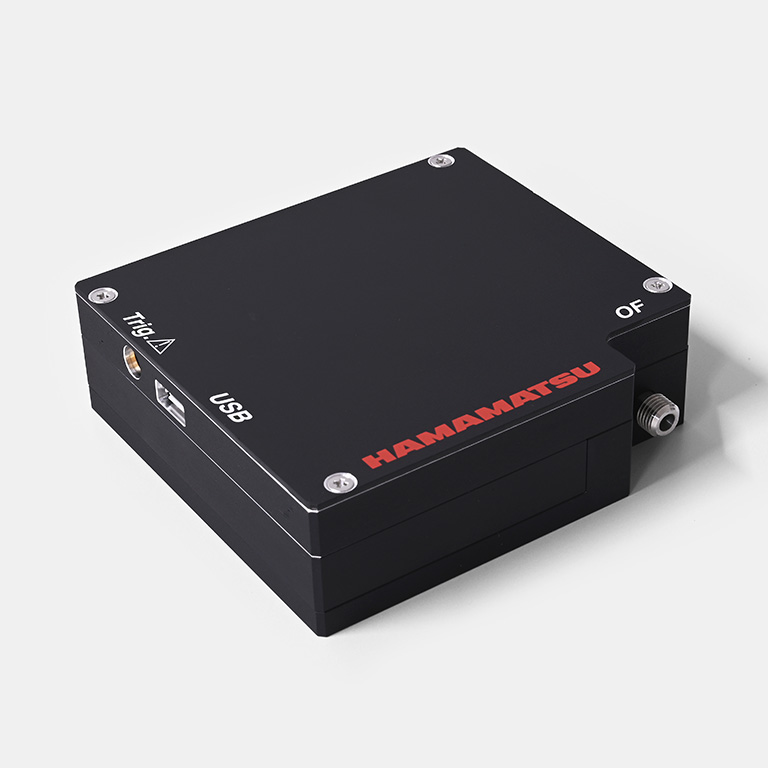

Mini-spectrometer
C16449MA-01
Compact and thin, built-in high-sensitivity CMOS image sensor
The mini-spectrometer C16449MA-01 is a polychromator provided in a compact, thin case that houses optical elements, image sensor, and driver circuit. Spectrum data can be acquired by guiding measurement light into a mini-spectrometer through an optical fiber and transferring the measured results to a PC via the USB connection. The incorporation of a high-sensitivity CMOS image sensor achieves high sensitivity and low power consumption. Changes to the spectral response range and spectral resolution are also available as options. Moreover, the trigger function that can be also used for short-term integration enables spectroscopic measurement of pulse emissions.
The product includes free evaluation software with functions for setting measurement conditions, acquiring and saving data, drawing graphs, and so on. Furthermore, the DLL function specifications are disclosed, so users can create their original measurement software programs.
Features
- Wide spectral response range
- High resolution
- Spectral response range and spectral resolution can be customized (optional).
- High-sensitivity CMOS image sensor built in (high sensitivity equivalent to that of a CCD)
- With a trigger function
- External power supply not necessary (USB bus powered)
Specifications
| Spectral response range | 190 to 1100 nm |
|---|---|
| Spectral resolution (FWHM) (typ.) | 1 nm |
| Spectral resolution (FWHM) (max.) | 2 nm |
| Cooling | Non-cooled |
| A/D resolution | 16 bits |
| Interface | USB 2.0 |
| Built-in sensor | High-sensitivity CMOS linear image sensor |
| Number of total pixels | 2048 pixels |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted |
Dimensional outline (unit: mm)
