Compact, Surface mount, Low dark current NIR sensor
InGaAs PIN photodiodes G17190 / G17191 / G17192 / G17193 series
- Hamamatsu Photonics K.K.

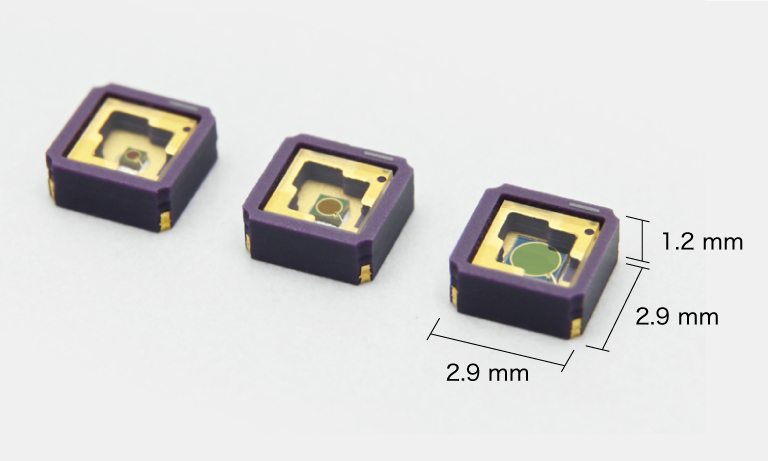

A surface-mount ceramic package type has been added to the lineup of InGaAs PIN photodiodes for long wavelengths (up to 2.6 μm).
The new product offers the same low dark current as conventional metal package products, and its small size makes it suitable for installation in hand-held devices and mobile equipments.
The lineup includes 4 different sensitivity wavelength ranges and 3 different photosensitive area sizes in the same shape.
Features
- Cutoff wavelength:
1.7 μm, 1.9 μm, 2.1 μm, 2.6 μm - Photosensitive area:
φ0.3 mm, φ0.5 mm, φ1.0 mm - Compact, surface-mount ceramic package
- Compatible with lead-free reflow soldering
- Low dark current
Applications
- Gas measurement
- Temperature measurement
- Laser measurement system
Spectral response
Product lineup
| Type no. | Photosensitive area (mm) |
Spectral response range (μm) |
Peak sensitivity wavelength (μm) |
|---|---|---|---|
| G17190-003K | φ0.3 | 0.9 to 1.7 | 1.55 |
| G17190-005K | φ0.5 | ||
| G17190-010K | φ1.0 | ||
| G17191-003K | φ0.3 | 0.9 to 1.9 | 1.75 |
| G17191-005K | φ0.5 | ||
| G17191-010K | φ1.0 | ||
| G17192-003K | φ0.3 | 0.9 to 2.1 | 1.95 |
| G17192-005K | φ0.5 | ||
| G17192-010K | φ1.0 | ||
| G17193-003K | φ0.3 | 0.9 to 2.6 | 2.3 |
| G17193-005K | φ0.5 | ||
| G17193-010K | φ1.0 |
