How Flow Cytometry Works: Optics, Lasers and Photon Detectors

Flow cytometry enables fast, quantitative insights at single-cell level for research and clinical use. It is widely used to identify immune cell subsets, detect rare cells in blood, and monitor cell health in bioprocesses. Reliable results are therefore paramount. This is why the instrument’s optical system matters, especially the lasers, filters, and detectors that generate and capture the signal. In this article, we follow the path from sample to signal and how optical design and detector choice, including PMTs, APDs, and SiPMs, influence sensitivity, linearity, and multiplexing.

Why flow cytometry— and why reliability is hard

Flow cytometry can deliver fast results because it interrogates cells as they move through an optical system, but the same speed makes the measurement chain unforgiving. Weak fluorescence signals, spectral overlap, optical losses, and detector noise can all affect how clearly cell populations are identified and quantified. This is why the optical chain, from laser excitation and spectral separation to photon detection must be designed for stable, efficient signal capture.

How flow cytometry generates signals

In flow cytometry, cells suspended in a fluid stream are hydrodynamically aligned in single file and pass through one or more focused laser beams for optical interrogation. Detectors capture scatter and fluorescence to quantify cell properties.

The interaction of incident light with cells generates two main optical signals: light scattering and fluorescence.

Light scattering measurements

Forward Scatter – primarily correlates with cell or particle size
Side Scatter – reflects internal structural complexity or granularity

Fluorescence detection

Fluorescence signals originate from fluorophore-labeled antibodies, chemical dyes, or genetically encoded reporters. These optical signals are collected by photodetectors, converted into electrical pulses, and digitally processed to generate quantitative cellular parameters used for multiparametric single-cell analysis.

The optical chain in flow cytometry

Reliable measurements come from controlling the optical chain. The instrument must deliver stable laser illumination for consistent excitation, collect emitted and scattered light, use dichroic mirrors and bandpass filters to direct specific wavelengths to individual detectors, and then convert those photons into electrical pulses that can be digitally processed into quantitative cellular parameters.

The core components of flow cytometer

A modern flow cytometer consists of four integrated subsystems:

Fluidics

Cell transport
and focusing

›

Optics

Laser excitation
and light collection

›

Detection & digitalization

Photon conversion
and signal processing

›

Data analysis

Parameter extraction
and visualization

Simplified signal path in a flow cytometer, from cell handling and optical interrogation to signal conversion and data interpretation.

The optical subsystem

The optical subsystem consists of an excitation pathway and a collection pathway:

Excitation pathway (flow cytometry lasers)

Modern instruments incorporate multiple lasers, typically at wavelengths such as:

405 nm (violet)
488 nm (blue)
532/561 nm (green/yellow)
640 nm (red)

Beam-shaping optics (lenses, mirrors, and spatial filters) create a stable, narrow beam for consistent excitation.

Light collection and spectral separation

Collected light is separated by wavelength and directed to specific detectors:

Forward Scatter Collection (FSC) typically measured with photodiodes for high linearity measurement of cell size.
Side Scatter Collection (SSC) often uses PMTs or SiPMs to capture side-scattered light that is sensitive to internal cellular complexity.
Fluorescence detection employs dichroic mirrors and band-pass filters to direct specific wavelengths to individual detectors.

High optical purity ensures low spectral spillover and high fidelity fluorescence quantification, improving measurement accuracy.

Applications of flow cytometry

Optical design and detector choice affect many flow cytometry applications. In immunophenotyping, sensitivity and spectral separation help distinguish multiple labeled cell populations. In cell cycle, apoptosis, and viability assays, fluorescence intensity must be measured consistently across different signal levels. In microbial cytometry and bioprocess monitoring, compact and stable detection can support routine or process-oriented measurements (PAT).

Flow Cytometry

Choosing the right photon detector for each channel

Once light has been split into wavelength bands, the detector choice becomes makes a difference. The same sample can appear different depending on whether a channel is optimized for dim fluorescence sensitivity, for linearity, or for dense multiplexing, so it helps to match PMTs, APDs, and SiPMs to the application.

Photon detection determines sensitivity, dynamic range, and stability for dim fluorescence.

PMT selection guide

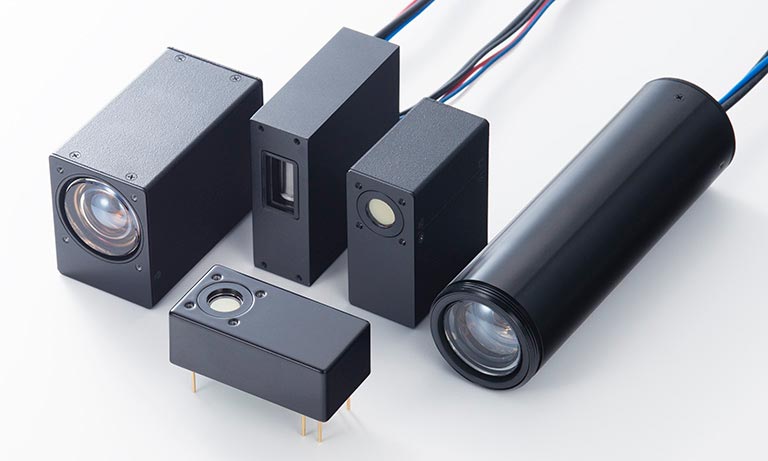

Photomultiplier tubes (PMTs)

Best for Dim fluorescence channels and validated clinical workflows where maximum sensitivity is required.

Why it’s used Very high gain and low noise support detection of weak photon signals.

Trade-offs Higher voltage and larger form factor compared with solid-state options.

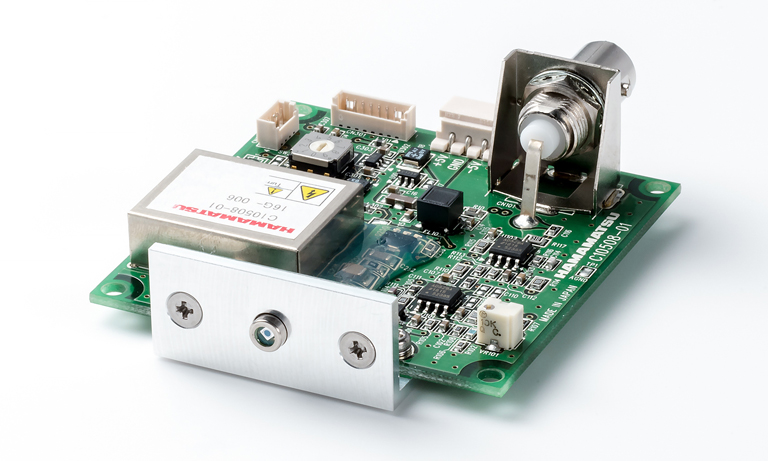

Avalanche photodiodes (APDs)

Best for Applications that benefit from high linearity, such as FSC or moderate-brightness fluorescence channels.

Why it’s used Excellent linearity and compact, low-voltage integration.

Trade-offs Typically less sensitive than PMTs for very dim channels.

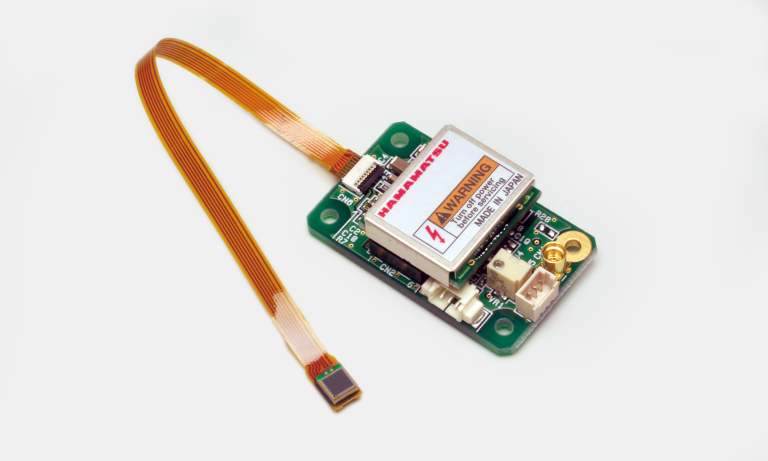

Silicon photomultipliers (SiPMs)

Best for Compact multi-channel instruments and spectral flow cytometry, where stable, uniform detector arrays support unmixing.

Why it’s used PMT-like gain in a robust, low-voltage solid-state package.

Trade-offs Higher dark noise and microcell saturation at very high intensities, managed by design and processing.

PMTs, APDs, and SiPMs each come with different strengths and trade-offs for flow cytometry, especially when you are balancing dim-fluorescence sensitivity, linearity, and multiplexing.

Where optical performance matters

Flow cytometry generates both physical and biochemical information. Forward scatter (FSC) and side scatter (SSC) report cell size and internal complexity, while fluorescence channels report labelled molecular markers. In multiparametric assays, those readouts are only reliable when excitation is stable, emitted light is cleanly separated, and detector response is matched to the signal level.

This becomes even more important as assays become more complex. Spectral flow cytometry places greater demands on spectral separation, detector channels, and unmixing, while microfluidic cytometry highlights the value of compact optical integration and detector stability in smaller-format systems.

Looking ahead

Flow cytometry’s ability to quantify both physical and molecular characteristics of complex cell populations has made it indispensable across scientific and medical disciplines.

Ongoing technological advances promise further improvements in sensitivity, resolution, and accessibility, ensuring that flow cytometry will remain a cornerstone of modern biological measurement for decades to come.
