Compact X-ray CMOS camera
H8953-30

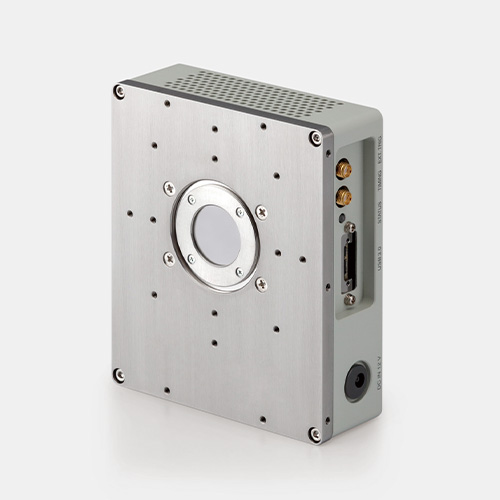

DX-CUBE: H8953-30 is a compact X-ray CMOS camera for non-destructive inspection, which uses a consumer CMOS camera in combination with our high-sensitivity CsI scintillator.
Features
- Compact (palm size)
- Uses high sensitivity CsI scintillator
- Low power consumption
Applications
- X-ray drilling
- X-ray non-destructive inspection
X-ray image examples
Lithium-ion battery and protection circuit
X-ray tube voltage: 100 kV
Geometric magnification: 1.4 times
Flexible printed circuit board
X-ray tube voltage: 100 kV
Geometric magnification: 3.1 times
Specifications
| Parameter | Description / Value | Unit | |
|---|---|---|---|
| Input window | Carbon (CFRP) | - | |
| X-ray sensing surface | Csl | - | |
| Effective field of view (H × V) | 20 × 12.5 | mm | |
| Resolution | Typ. | 20 | Lp/mm |
| Image sensor | CMOS image sensor with 2.35 Mpixels 1/1.2 type global shutter | - | |
| Pixel size (H × V) | 5.86 × 5.86 | μm | |
| Effective number of pixels (H × V) | 1936 × 1216 | - | |
| Binning | 1×2, 2×2, 2×1 | - | |
| Video signal output | 8 / 10 / 12 | bit | |
| Partial readout | Single ROI mode, multi ROI mode | - | |
| Power supply | PoCL (Power over Camera Link) or 4-pin connector | - | |
| Power supply voltage (DC) | PoCL: 12 ± 10 ％ (2.76 W 12 V input), 4 pin: 12 to 24 ± 10 ％ (2.76 W 12 V input) | V | |
| Video processing functions | Scratch correction, gamma correction, etc. | - | |
| Auto level control | 79 μs to 8 s (10 bit) | - | |
| Frame rate | Max.165.5 | frames/s | |
| Operating ambient temperature | +10 to +40 | °C | |
| Storage ambient temperature | 0 to +40 | °C | |
| Operating / storage ambient humidity | Below 60 (no condensation) | % | |
| CMOS camera | Product by JAI, GO-2400M-PMCL | - | |

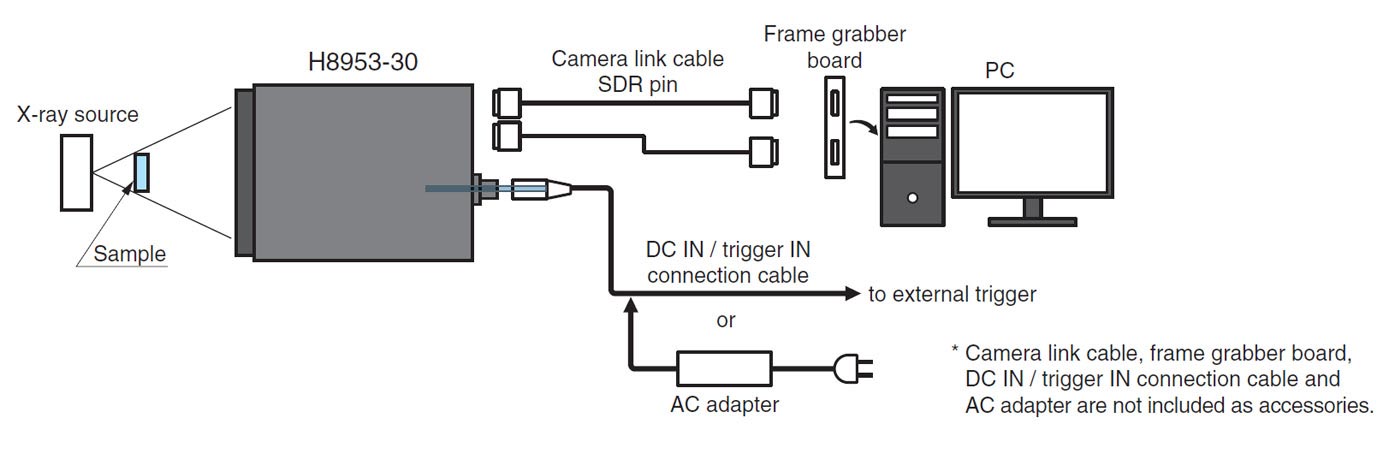

Connection example

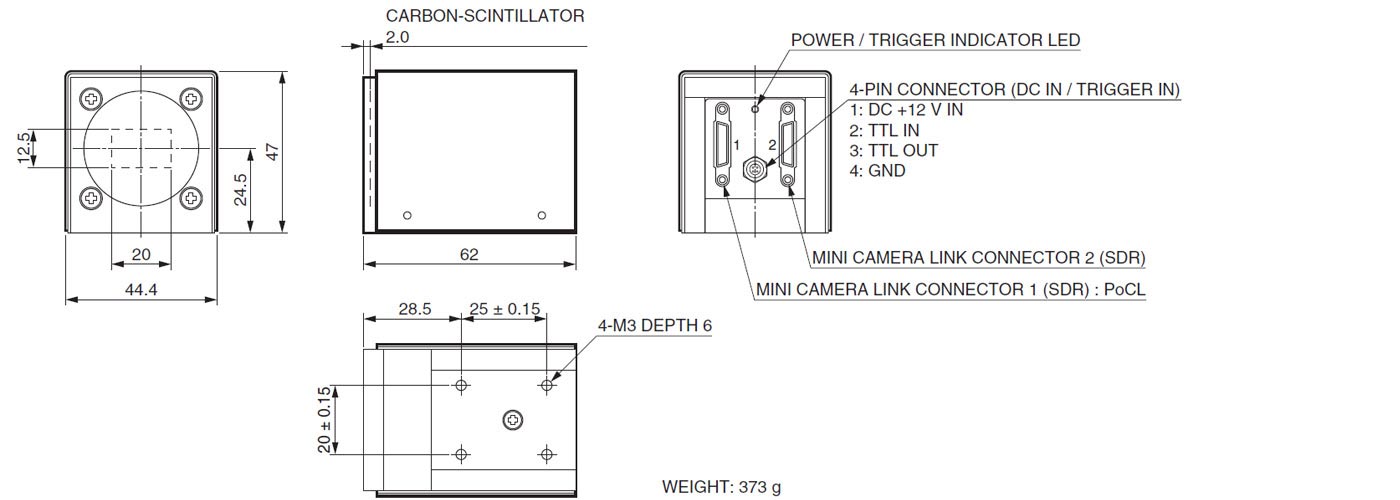

Dimensional outlines
