The L10660-01 is a high-power LED that emits infrared light at a peak wavelength of 1.45 μm. The LED is suitable for applications requiring use of infrared emitters with InGaAs photodiode.

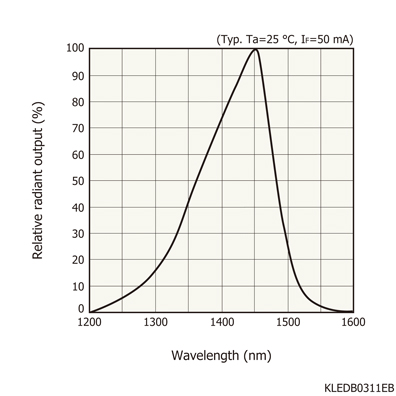

- Peak emission wavelength: 1.45 μm
- High radiant output power
|Package Category||With lens|
|Peak emission wavelength (min.)||1400 nm|
|Peak emission wavelength (typ.)||1450 nm|
|Peak emission wavelength (max.)||1500 nm|
|Spectral half-width (typ.)||120 nm|
|Radiant flux (typ.)||2.8 mW|
|Forward voltage (typ.)||1 V|
|Cutoff frequency (typ.)||15 MHz|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
