Infrared LED


Peak emission wavelength: 1.45 μm


The L10660 is a high-power LED that emits infrared light at a peak wavelength of 1.45 μm. The LED is suitable for applications requiring use of infrared emitters with InGaAs photodiode.

- Peak emission wavelength: 1.45 μm
- High radiant output power


Package Metal
Package Category Flat cap
Peak emission wavelength (min.) 1400 nm
Peak emission wavelength (typ.) 1450 nm
Peak emission wavelength (max.) 1500 nm
Spectral half-width (typ.) 120 nm
Radiant flux (typ.) 2.4 mW
Forward voltage (typ.) 1 V
Cutoff frequency (typ.) 15 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

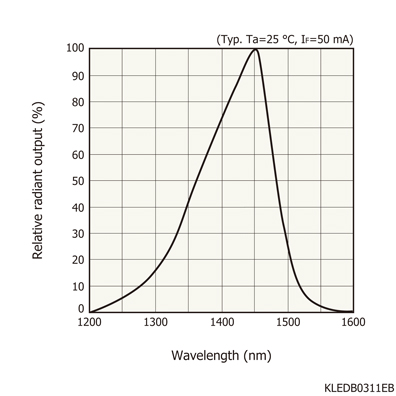

Emission Spectrum

Dimensional outline (unit: mm)
