Microfocus X-ray source
|Tube Voltage||150 kV|
|Tube Voltage Operational Range||40 to 150 kV|
|Maximum Output||75 W|
|X-ray Focal Spot Size||(at 4W) 5 μm|
|X-ray Beam Angle (Coned)||43 degree|
|Focus to Object Distance (FOD)||17 mm|

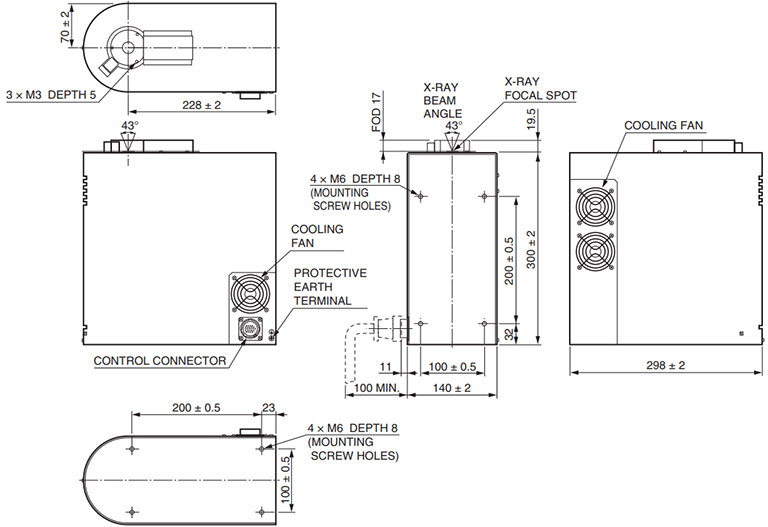

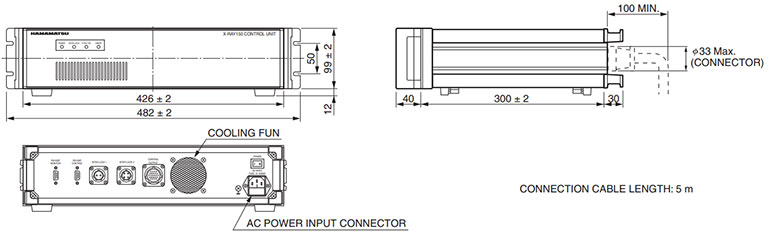

System configuration of L12161-07: X-ray tube unit(L8122-01) + X-ray control unit(C12163) + turbo pump set + accessories
