Microfocus X-ray source

L9181-02

Tube voltage : 40 kV to 130 kV, Maximum output : 39 W, X-ray focal spot size : 5 um, Serial port control : RS-232C



X-ray source for non-destructive inspection of electrical devices, mount boards, automotive parts, etc.

Features

  • Focal spot size: 5 µm (at 4 W)
  • No high voltage cable connection required
  • External control via RS-232C interface
  • High power: Maximum output 39 W

Applications

  • Non-destructive inspection
  • X-ray CT

[Applicable objects]

  • Electronic component
  • Printed circuit board
  • Plastic component
  • Metal component

Specifications

Tube Voltage 130 kV
Type Sealed type
Tube Voltage Operational Range 40 kV to 130 kV
Maximum Output 39 W
X-ray Focal Spot Size 5 μm (at 4 W)
X-ray Beam Angle (Coned) 45 degree
Focus to Object Distance (FOD) 13 mm

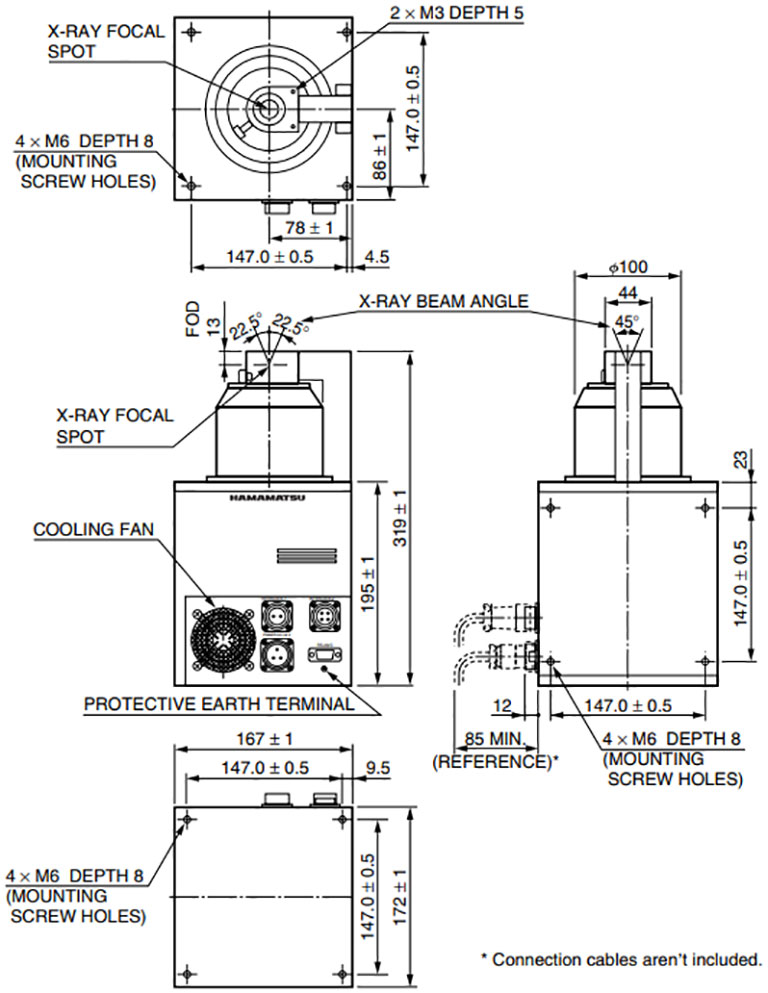

Dimensional outlines (Unit mm)
