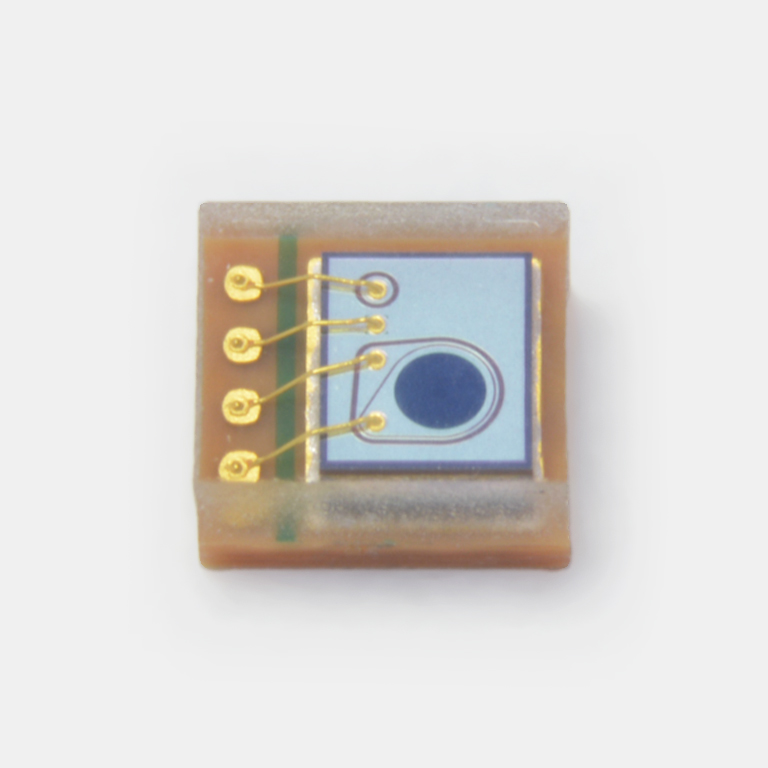

Si APD
S15414-05
High-speed, compact Si APD that does not require temperature adjustment
The S15415 series is a gain-stabilized APD (GS APD) with a built-in temperature compensation function inside the sensor. This realizes constant gain without the need for temperature adjustment. It is suitable for laser monitors of optical rangefinders used in a wide range of applications, from consumer to industrial.
Features
- Built-in temperature compensation function
- Compact package: 2.0 × 1.8 × 0.85t mm
- Peak sensitivity wavelength: 800 nm (M=50)
- High-speed response: cutoff frequency=1.0 GHz typ. (λ=800 nm, M=50)
| Type | Gain-stabilized type |
|---|---|
| Photosensitive area | φ0.5 mm |
| Package | Glass epoxy |
| Package Category | Surface mount type |
| Peak sensitivity wavelength (typ.) | 800 nm |
| Spectral response range | 400 to 1000 nm |
| Photosensitivity (typ.) | 0.52 A/W |
| Dark current (max.) | 0.3 nA |
| Cutoff frequency (typ.) | 1000 MHz |
| Terminal capacitance (typ.) | 1.4 pF |
| Gain (typ.) | 50 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted |
Spectral response
Dimensional outline (unit: mm)
