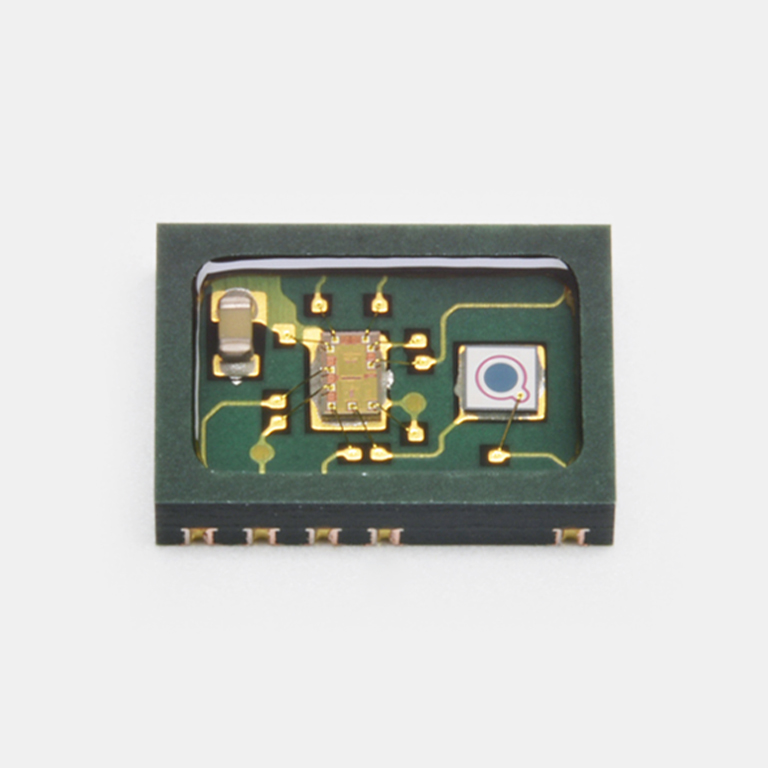

Photosensor with front-end IC

S15597-01CT

Compact APD suitable for various light level detection (Φ0.2 mm)



The S15597-01CT is a compact optical device that integrates a Si APD and preamp. It has a built-in DC feedback circuit for reducing the effects of background light. It also provides excellent noise and frequency characteristics. They also provide excellent noise and frequency characteristics. We provide an evaluation kit for these products. Contact us for detailed information.


Features
-High-speed response: 180 MHz
-Two-level gain switch function
 (low gain: single output, high gain: differential output)
-Reduced background light effects
-Small waveform distortion when excessive light is incident



Package Glass epoxy
Number of channel 1 ch
Photosensitive area/ch φ0.2 mm
Spectral response range 400 to 1100 nm
Peak sensitivity wavelength 840 nm
Photosensitivity 3200 kV/W
High Band Cut-off Frequency 180 MHz
Note Photosensitivity: High gain, λ=905 nm, M=100
High cutoff frequency: Low gain

Spectral response

Dimensional outline (unit: mm)
