CCD area image sensor
The S8658-01 is a FFT-CCD area image sensor specifically developed for X-ray imaging. Since a FOS (Fiber Optic plate with Scintillator) to convert Xrays into visible light is mounted on the CCD chip, X-ray images can be captured in fine detail. Three CCD chips are linearly arranged in close proximity to form a long and narrow sensor format. Effective size of each active area is 73.728 (H) × 6.144 (V) mm2, so the overall active area length of the three chips is up to 220 mm in length. Each CCD chip has 1536 × 128 pixels and the pixel size is 48 × 48 μm. When used in TDI operation mode which is a special feature of this CCD image sensor, even X-ray images of a moving object can be clearly acquired, making S8658-01 ideal for non-destructive inspection of products carried on a belt conveyor, etc.
- 1536 (H) × 128 (V) (× 3 chips)
- X-ray sensitive area: 220 × 6 mm
- Pixel size: 48 × 48 μm

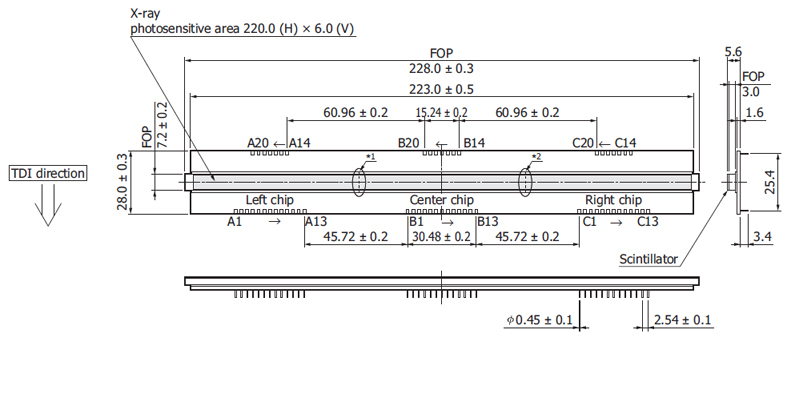

- Slit-like image of 220 mm long by aligning 3 CCD chips together
- TDI (Time Delay Integration) operation
- 100 % fill factor
- Wide dynamic range
- Low dark current
- MPP operation
|Image size||221.184 x 6.144 mm|
|Pixel size||48 x 48 μm|
|Pixel pitch||48 μm|
|Number of total pixels||4608×128 pixels|
|Number of effective pixels||4608×128 pixels|
|Scintillator type||CsI (+FOP)|
|Frame rate typ.||15 frames/s|
