InAsSb photovoltaic detector

P13894-011MA

High-speed response and high sensitivity in the spectral band up to 11 μm, infrared detectors



The P13894 series are photovoltaic type detectors that have achieved high sensitivity in the spectral range up to 11 μm using Hamamatsu unique crystal growth technology and process technology. These products are environmentally friendly infrared detectors and do not use mercury or cadmium, which are substances restricted by the RoHS Directive. They are replacements for previous products that contain these substances. They are compact and easy to handle.


Features
-High sensitivity
-High-speed response
-High shunt resistance
-Non-cooled (P13894-011CN/-011NA/-011MA)



Photosensitive area 1×1 mm
Number of elements 1
Package category TO-5
Package Metal
Cooling Non-cooled
Cutoff wavelength (typ.) 11 μm
Peak sensitivity wavelength (typ.) 5.6 μm
Photosensitivity (typ.) 0.0019 A/W
Detectivity D* (typ.) 6.5×107 cm・Hz1/2/W
Noise equivalent power (typ.) 1.5×10-9 W/Hz1/2
Rise time (typ.) 3 ns
Terminal capacitance (typ.) 0.6 pF
Measurement condition Ta=25℃, Detectivity D*: λ=λp, fc=1200 Hz, Δf=1 Hz, Terminal capacitance: VR=0 V, f=1 MHz

Spectral response

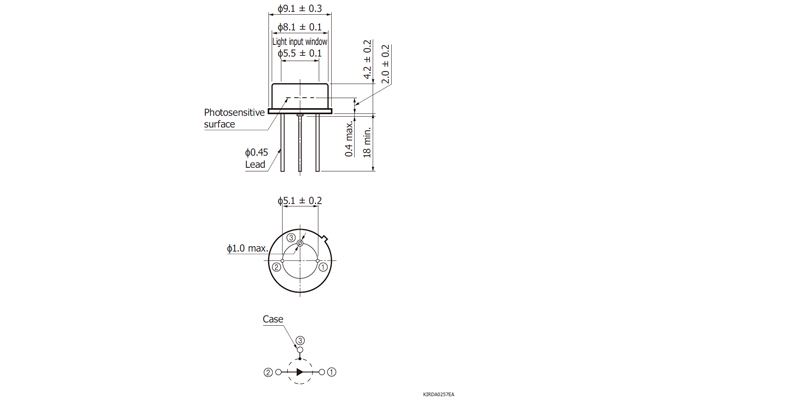

Dimensional outline (unit: mm)
