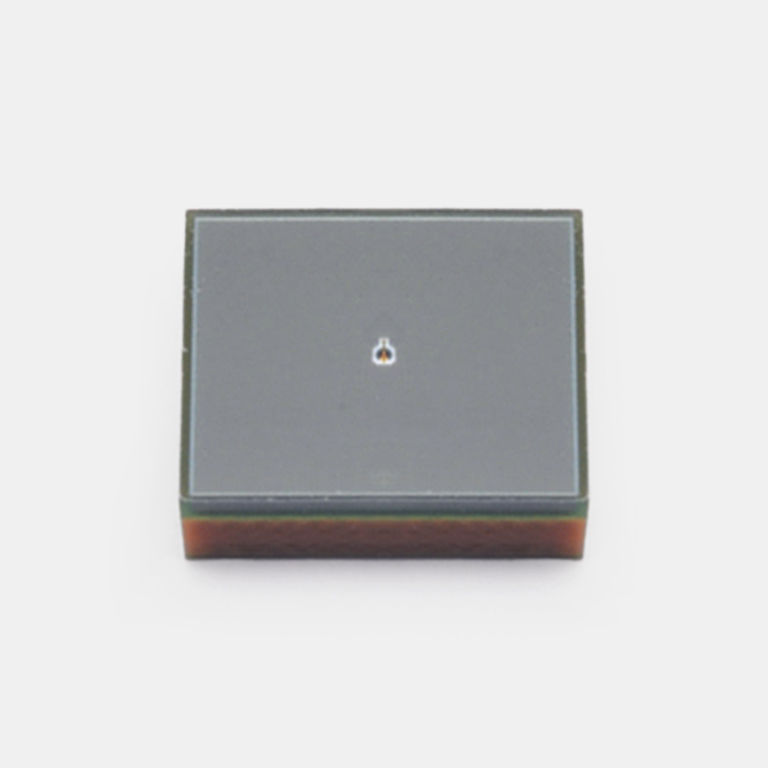

MPPC array

S14161-4050HS-06

Low breakdown voltage type MPPC for scintillation detector

The S14161 series achieve higher PDE (photon detection efficiency) and lower operation voltage than other MPPC to adapt for PET and radiation monitor application. They achieve small dead space in a photosensitive area with HWB (hole wire bonding) technology (Patent pending). And the gap from the photosensitive area edge to the package edge is only 0.2 mm. This package realizes the four-side buttable arrangement.


Features
-Higher PDE (50% at λp, Vop=VBR + 2.7 V)
-Lower voltage (VBR=38 V typ.) operation
-Small dead space in photosensitive area
-low afterpulses and crosstalk
-High gain: 106 order
-Excellent time resolution
-Immune to effects of magnetic fields

Package type Surface mount type
Number of channels 36 (6×6) ch
Effective photosensitive area / ch 4 × 4 mm
Number of pixels /ch 6331
Pixel size 50 μm
Spectral response range 270 to 900 nm
Peak sensitivity wavelength (typ.) 450 nm
Terminal capacitance/ch (typ.) 900 pF
Gain (typ.) 2.5×106
Measurement condition Ta=25 ℃
