MPPC, also called SiPM (silicon photomultipliers), is a new type of photon counting device that consists of multiple Geiger mode APD (avalanche photodiode) pixels. It is an opto-semiconductor with outstanding photon counting capability and low operating voltage and is immune to the effects of magnetic fields.

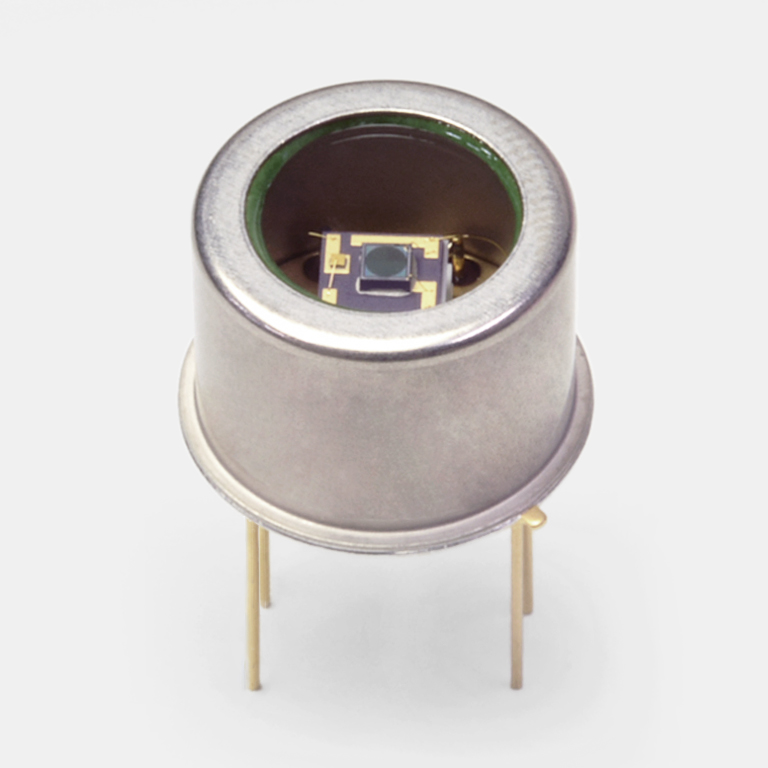

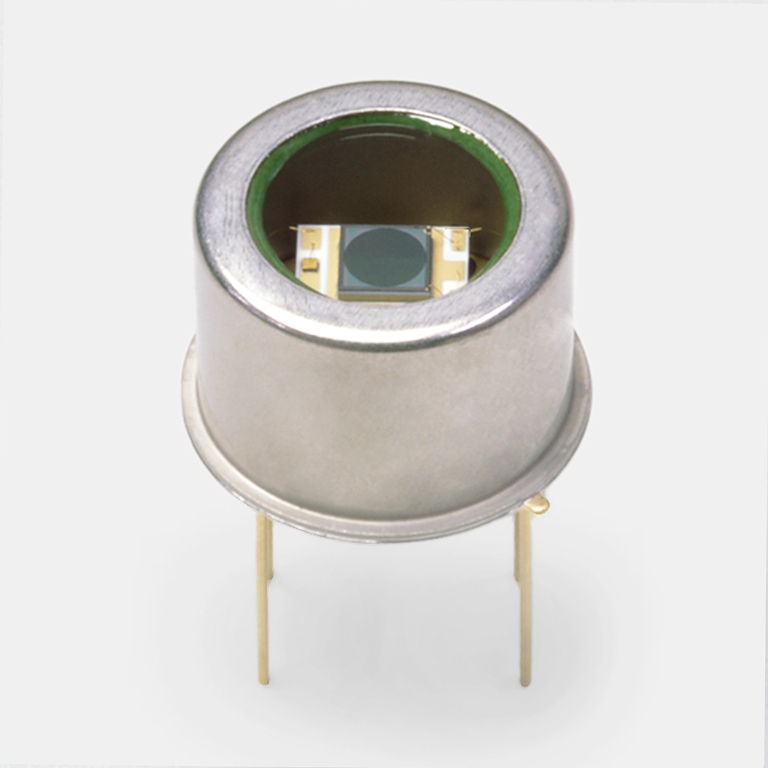

The S14422 series is an MPPC for the visible to near infrared region. It provides higher photon detection efficiency than the previous product (S13362 series) in the visible to near infrared region. In addition, the built-in TE-cooler function provides low crosstalk and low afterpulses as well as reduces the dark count to 1/10 that of the non-cooled type.
|Package type||Metal (TO-8)|
|Number of channels||1 ch|
|Effective photosensitive area / ch||φ 3.0 mm|
|Number of pixels /ch||11344|
|Pixel size||25 μm|
|Spectral response range||350 to 1000 nm|
|Peak sensitivity wavelength (typ.)||600 nm|
|Dark count/ch (typ.)||140 kcps|
|Terminal capacitance/ch (typ.)||350 pF|
|Measurement condition||Ta=25 ℃, Tchip=-10 ℃|
