Photo IC diode

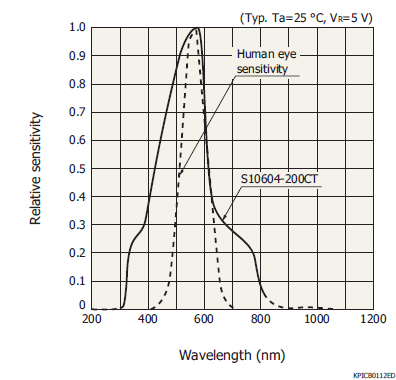

The S10604-200CT photo IC has spectral response close to human eye sensitivity. Two photosensitive areas are made on a single chip. Almost only the visible range can be measured by finding the difference between the two output signals in the internal current amplifier circuit. Effects of infrared remote control light on sensitivity are reduced when compared to previous types.
-Spectral response close to human eye sensitivity
-Small package: 2.0 × 1.25 × 0.8t mm
about 1/5 the cubic volume of previous type (S9067-201CT)
-Lower output-current fluctuations compared with phototransistors
-Low output fluctuations for light sources producing the
same illuminance at different color temperatures
-Suitable for lead-free reflow (RoHS compliance)
|Package type||COB (Chip On Board) type|
|Reverse voltage||-0.5 to +12 V|
|Spectral response range||300 to 820 nm|
|Peak sensitivity wavelength||560 nm|
|Operating temperature||-30 to +80 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Feature||Spectral response close to human eye sensitivity|
|Measurement condition||Ta=25 ℃, Photocurrent: 2856 K, 100 lx|
