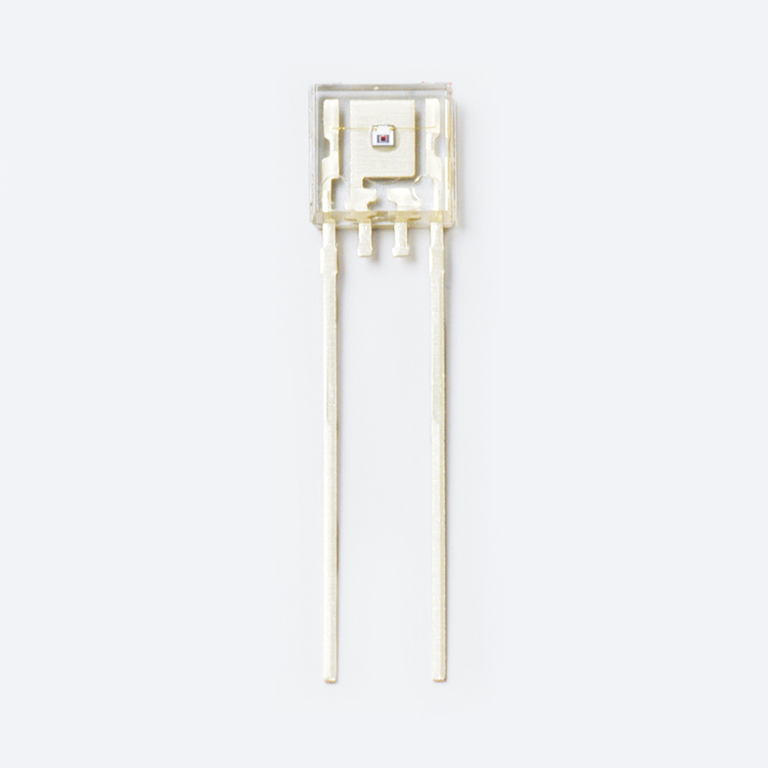

Photo IC diode

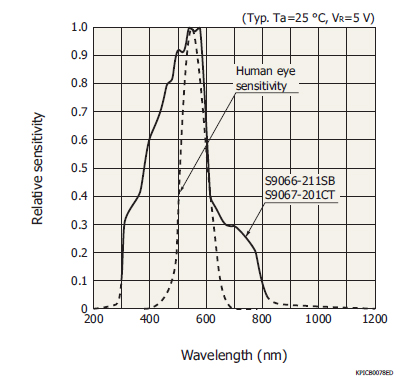

The S9067-201CT photo IC has spectral response close to human eye sensitivity. Two photosensitive areas are made on a single chip. One is for detecting light in the visible to near infrared range and the other is only sensitive to near infrared light and used for output signal correction. Almost only the visible range can be measured by finding the difference between the two output signals in the internal current amplifier circuit. Compared to previously available devices, this photo IC offers lower output fluctuations for light sources producing the same illuminance at different color temperatures.
-Spectral response close to human eye sensitivity is attained without using visual-compensated filter.
-Operation just as easy to use as a photodiode
-Large output current equivalent to phototransistors
-Lower output-current fluctuations
-Low output fluctuations for light sources producing the same illuminance at different color temperatures
|Package type||COB (Chip On Board) type|
|Reverse voltage||-0.5 to +12 V|
|Spectral response range||300 to 820 nm|
|Peak sensitivity wavelength||560 nm|
|Operating temperature||-30 to +80 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Feature||Spectral response close to human eye sensitivity is attained without using visual-compensated filter|
|Measurement condition||Ta=25 ℃, Photocurrent: 2856 K, 100 lx|
