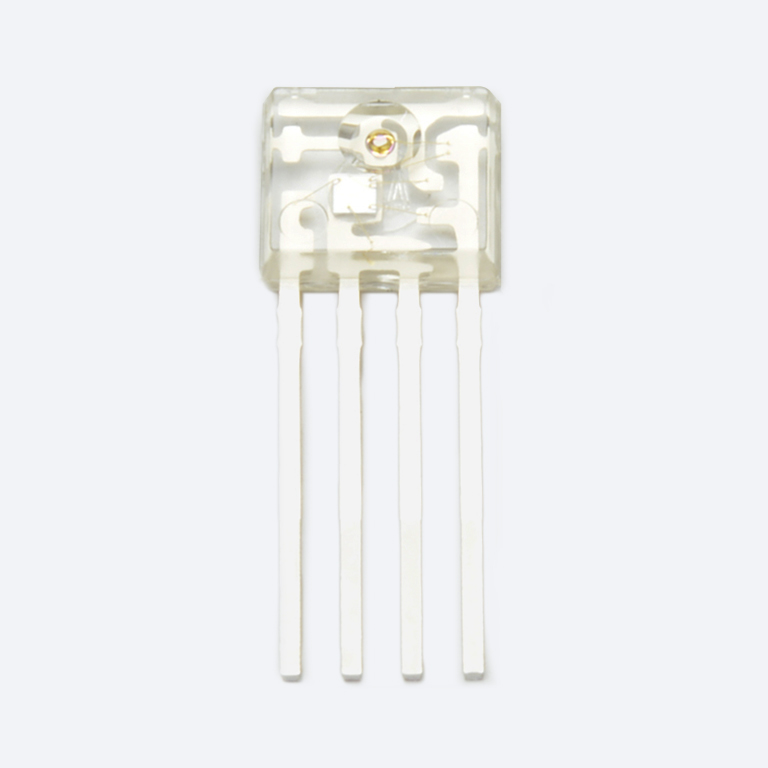

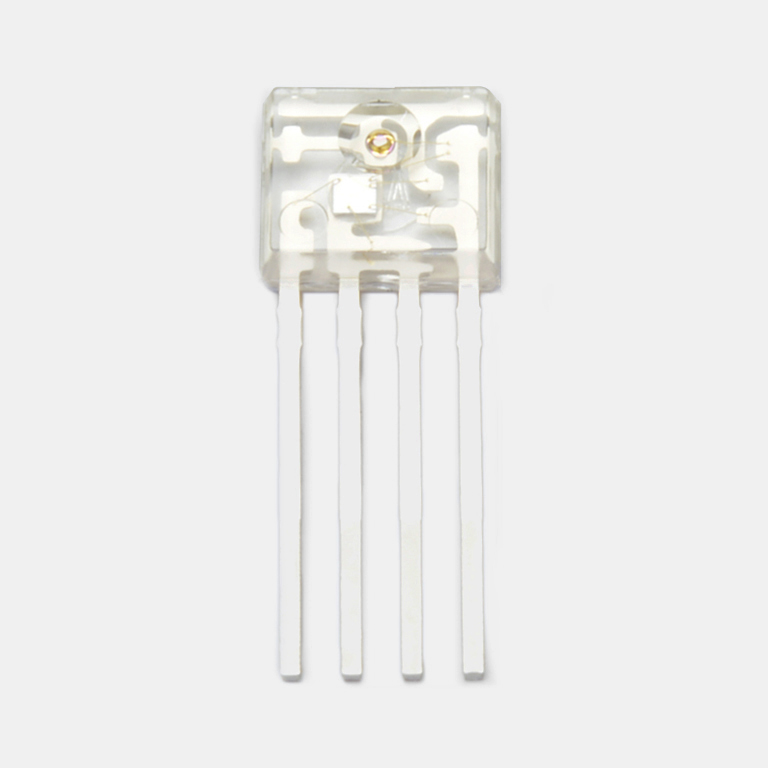

Photo IC for optical link

S13174-01SR

Receiver photo IC for DC to 10 Mbps optical link

The S13174-01SR is a receiver photo IC for plastic optical fiber (POF) communication. It has monolithically integrated PIN photodiode and signal processing circuit. It features small size and strong resistance to electromagnetic induction noise. High-speed optical communication is possible over a wide range from DC up to 10 Mbps. It provides CMOS-compatible digital output.


Features
-Receiver photo IC
-DC to 10 Mbps data communications
-Monolithic photo IC featuring strong resistance to electromagnetic induction noise
-Digital output (CMOS)

Type1 For POF data links
Part Number L12422-01SR
Package Plastic
Bandwidth DC to 10 Mbps
Operating temperature -20 to +85 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Ta=25℃, Vcc=3.135 to 3.465V , unless otherwise noted

Dimensional outline (unit: mm)
