Photo IC for optical link


Transmitter photo IC for DC to 10 Mbps optical link

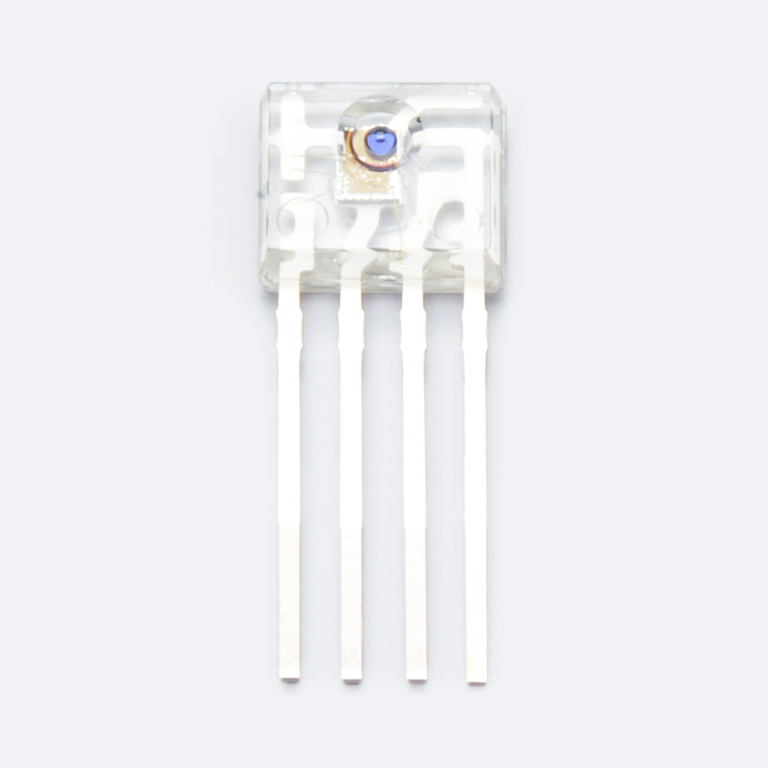

The L12422-01SR transmitter photo IC combines a 650 nm red LED, which is suitable for plastic optical fiber (POF) communication, and a driver IC. It has a mini molded lens suitable for coupling to the POF. It supports communication speeds ranging from DC to 10 Mbps.

-Transmitter photo IC
-Peak emission wavelength: 650 nm
-Supports DC to 10 Mbps communication

Type1 For POF data links
Part Number S13174-01SR
Package Plastic
Package type with lens
Bandwidth DC to 10 Mbps
Operating temperature -20 to +85 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Ta=25℃, Vcc=3.135 to 3.465 V, unless otherwise noted

Dimensional outline (unit: mm)
