Si photodiode array
The S12362-421 is a back-illuminated type 16-element photodiode array specifically designed for non-destructive X-ray inspection. The back-illuminated photodiode array is also simple to handle and easily couples to scintillators without having to worry about wire damage because there are no bonding wires and photosensitive areas on the back side.

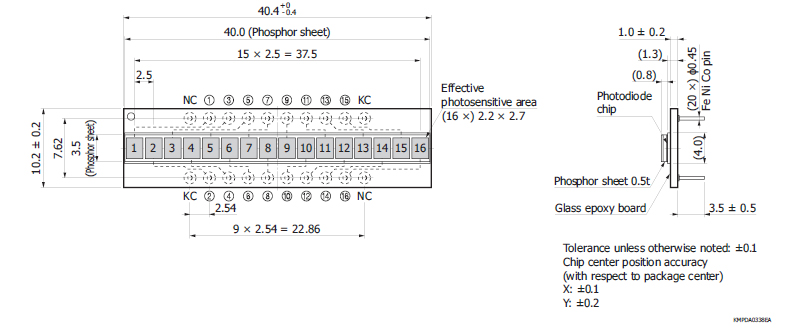

|Element size (per 1 element)||2.2 × 2.7 mm|
|Number of elements||16|
|Package category||With scintillator|
|Scintillator type||Phosphor sheet|
|Dark current (max.)||50 pA|
|Rise time (typ.)||6.5 μs|
|Terminal capacitance (typ.)||75 pF|
|Measurement condition||Ta=25 ℃, per element|
