Si PIN photodiode
The chip of this product is not sealed and is exposed. Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.
Before using this product, always read “Precautions / Unsealed products” described below.
|Photosensitive area||20 × 10 mm|
|Number of elements||1|
|Reverse voltage (max.)||100 V|

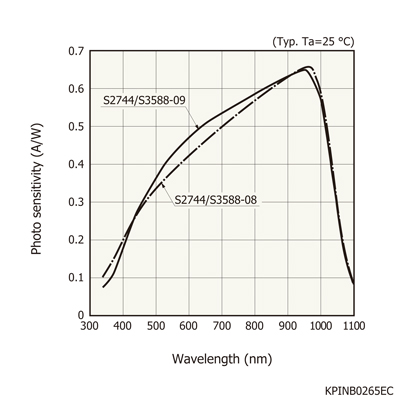

|Spectral response range||340 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.66 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||25 MHz|
|Terminal capacitance (typ.)||85 pF|
|Noise equivalent power (typ.)||4.7×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V, unless otherwise noted|
